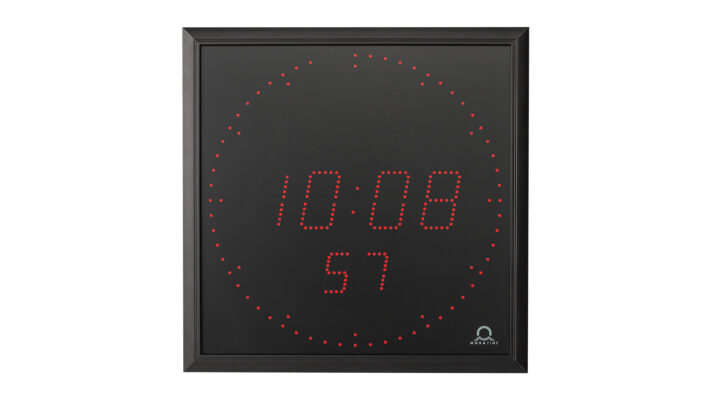

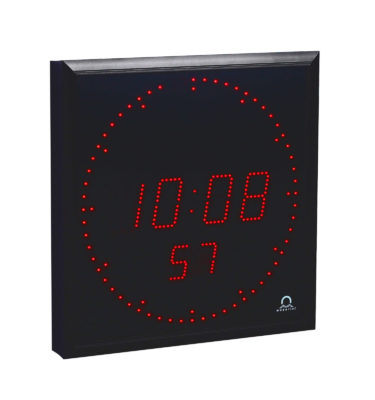

Digital indoor clock - DA Series

The DA Series digital clock will find use in many applications, in radio or television studios or as wall clock in offices or public areas. High luminance LED diodes provide for excellent readability from various angles of view.

Character heights & optimal reading distance:

  • 57/38m =  25-30 m
  • 45/32mm = 20-25 m
  • 18/13mm (table clock) = 7-10 m

Time Distribution:

  • MOBALine,
  • Seriel telegram (RS 232, RS 485)
  • IRIG / AFNOR
  • DCF 77
  • GPS (DCF current loop)
  • Quartz
  • NTP
  • WTD
  • WiFi version (2.4/5.0GHz), synchronized through NTP
  • polarized Impulse

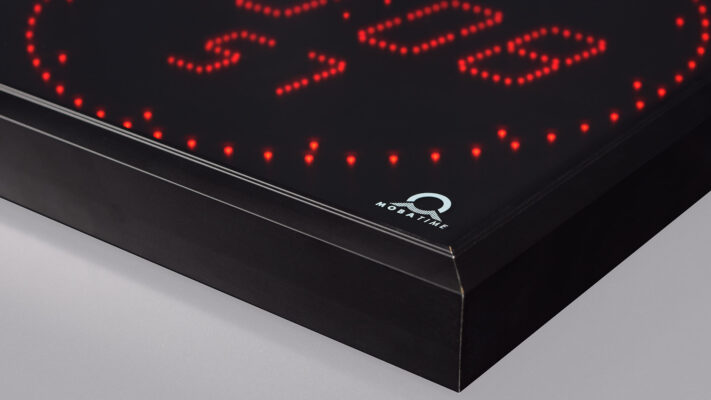

Housing materials:

  • Aluminium with surface finish (black anodized)*
  • *Special colors on request

Cover glass:

  •  Anti-reflective plexiglass cover

Protection rating:

  • IP 40 (on request IP 54)
  • IP 20 only for DA.18

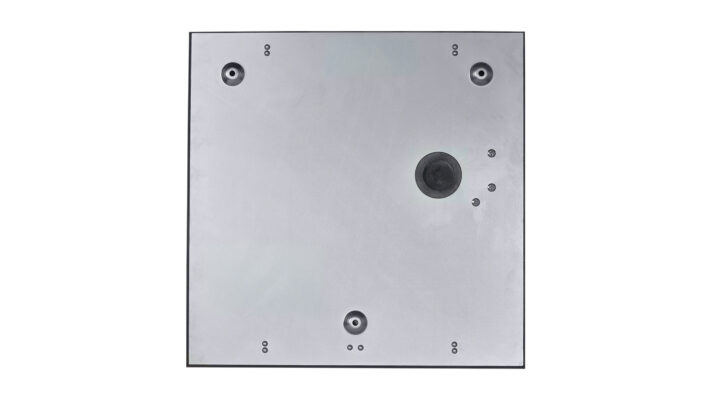

Installation possibilities:

  • wall mounting (Single-sided)
  • wall bracket (Double-Sided)
  • ceiling suspension (Double-Sided)
  • flush mounting (Single-Sided)
  • flush mounting in panel (DA 18)
  • table version (DA 18)

Power Supply:

  • Standard = 100 – 240 VAC, 50 – 60 Hz
  • VDC (on request) = 18 – 56 VDC (18 – 40 VAC)
  • VDC 12V (on request) = 12 – 16 VDC
  • PoE version = PoE (IEEE 802.3af class 0)
    PoE (IEEE 802.3 af-Class 2) for single sided
    PoE (IEEE 802.3af class 3) for double-sided

Optional components:

  • GPS or DCF 77 radio signal receiver
  • Various types of temperature sensors
  • Keyboard for stopwatch control, connected via 5m cable
  • Remote controller for clock set up and stopwatch control

Time display

  • in 12-hour or 24-hour format, six digit format = (HH:MM:SS)
  • possibility to setting up the world time zones

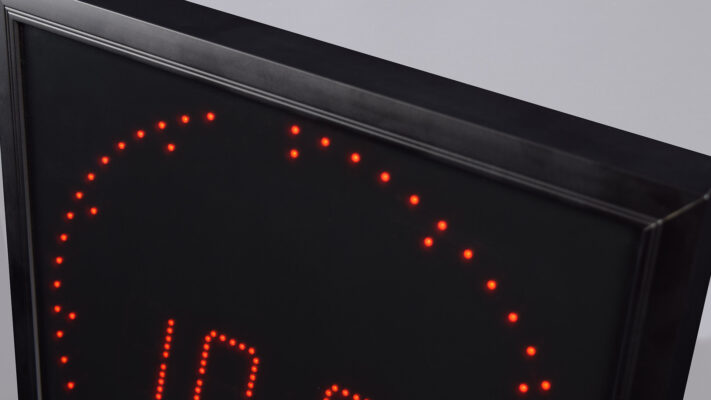

  • 7-segment LED display, circle of second marks

Date display

  • in six digit format = (DD.MM or DD.MM.YY)

Temperature display

  • Celsius or Fahrenheit

Stopwatch function

  • count up to 24 hours, countdown from set value, display of time intervals, freezing of display

Display brightness

  • Automatic or manual adjustment
