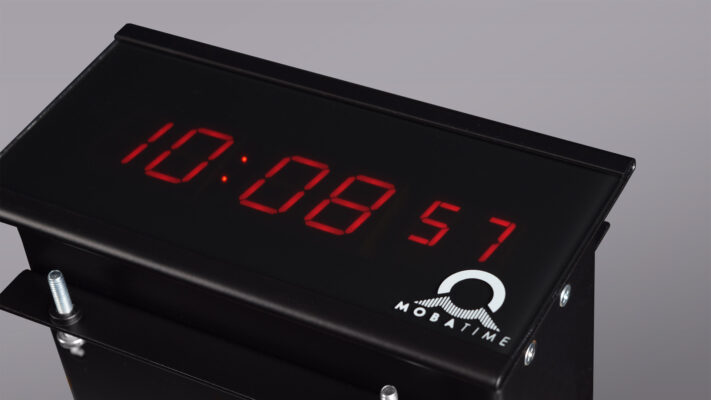

Digital indoor clock - DC.20 Series

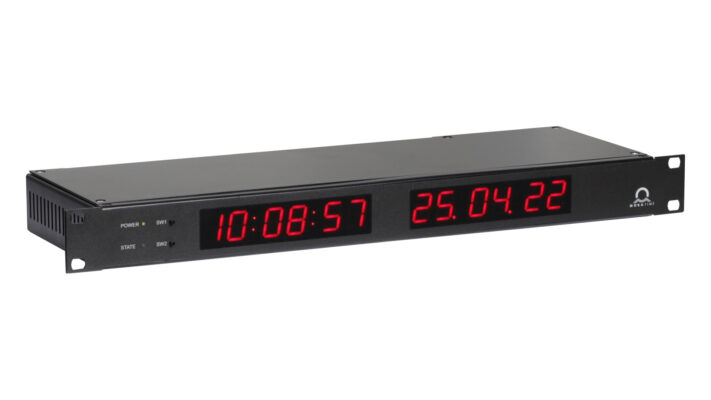

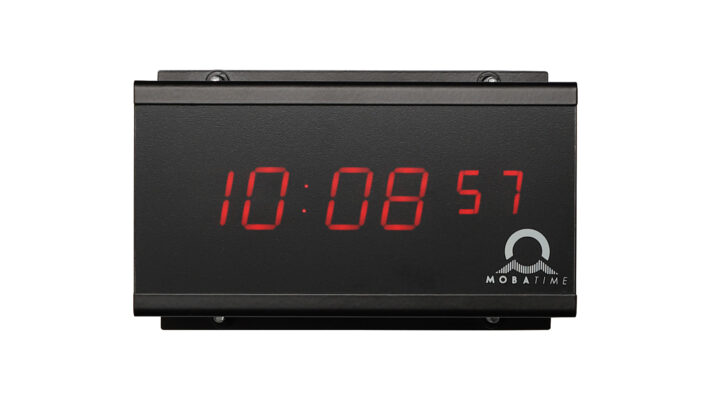

DC.20 digital clock, intended to be used indoors. The clock meets the requirements of the majority of conventional applications in radio and TV studios, PBX, conference shelves and other. DC.20 Series is available in a rack and panel mount version.

Character heights & optimal reading distance:

  • 20/14mm = 7-10 m
  • 20mm = 7-10 m

Time Distribution:

  • MOBALine
  • RS 485
  • DCF 77
  • GPS (DCF current loop)
  • NTP
  • polarized Impulse

Housing materials:

  • Aluminium with surface finish (black or silver anodized)*
  • *Special colors on request

Cover glass:

  • Anti-reflective plexiglass cover

Protection rating:

  • IP 40

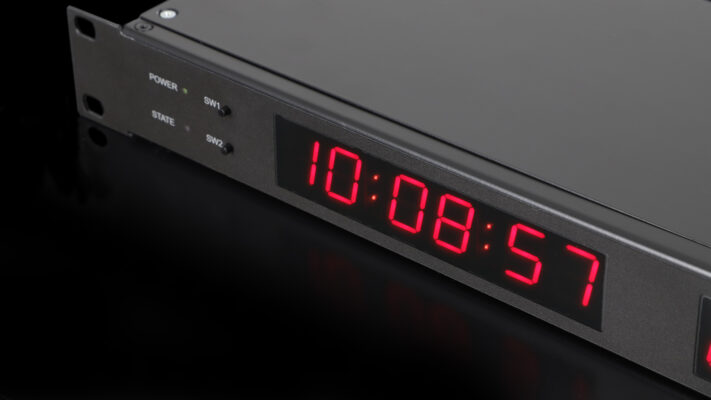

Installation possibilities:

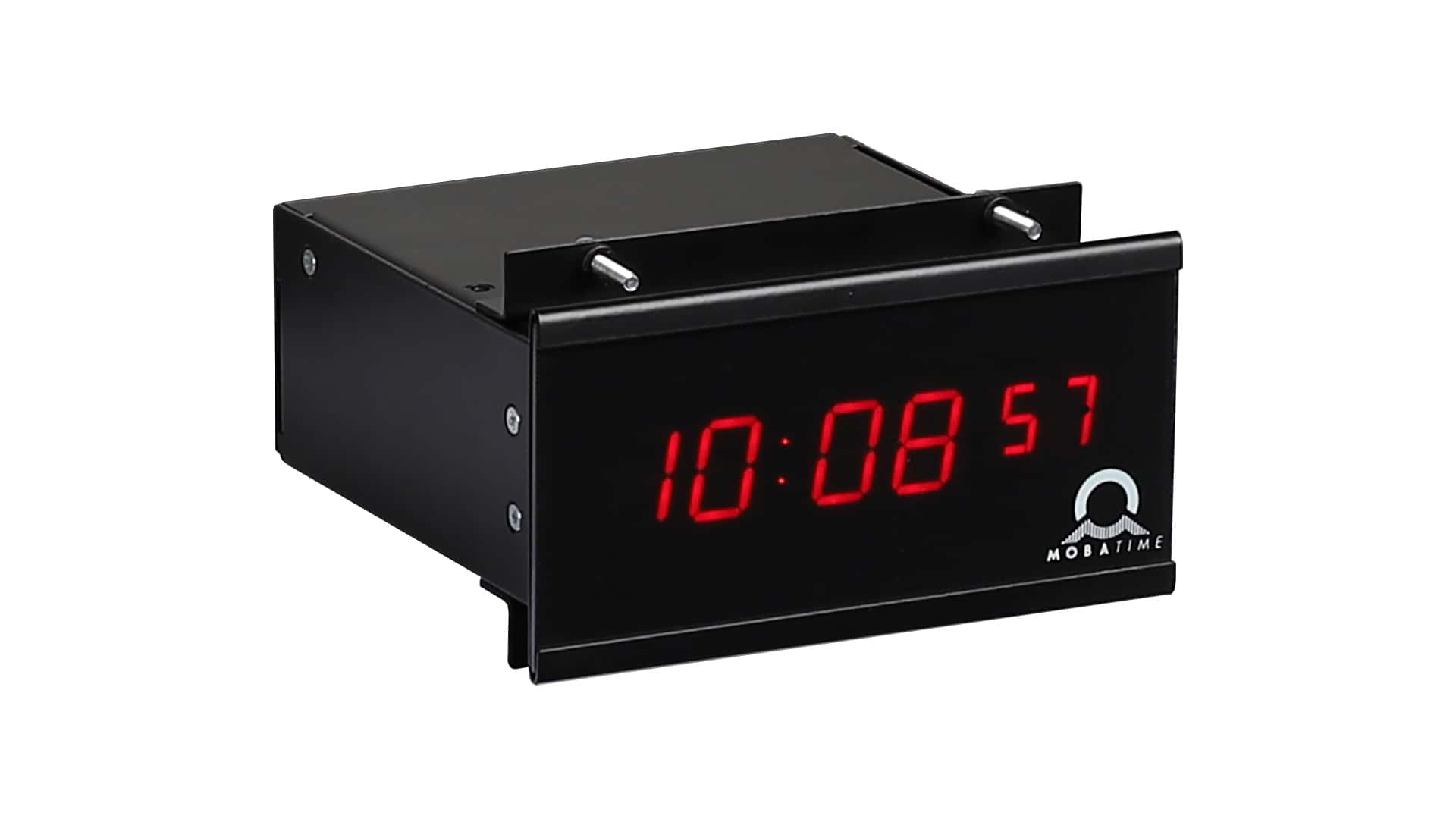

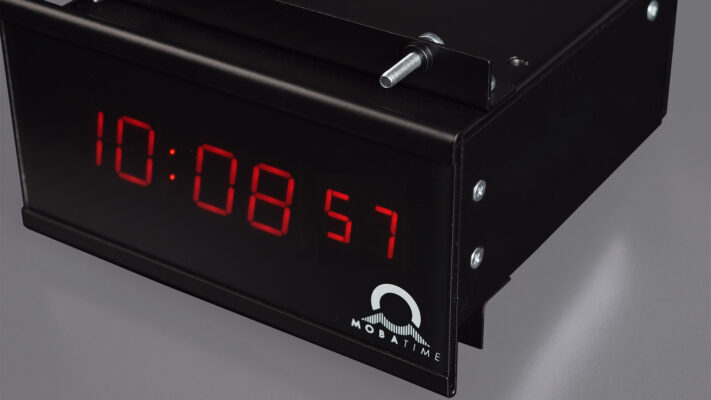

  • flush mounting (Single-sided)

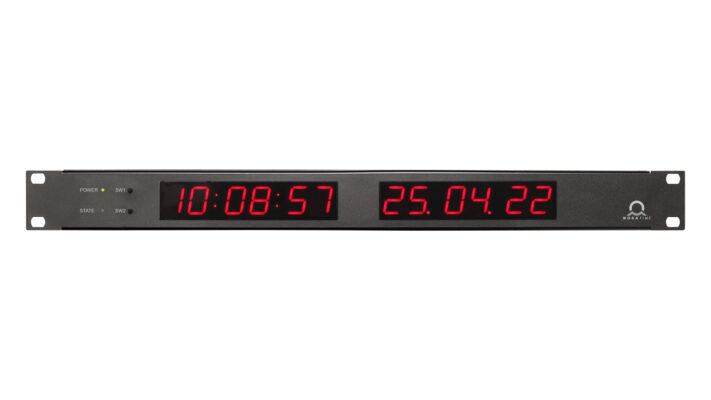

  • rack mounting (Single-sided)

Power Supply:

  • Standard = 100 – 240 VAC, 50 – 60 Hz
  • VDC (on request) = 18 – 56 VDC (18 – 40 VAC)
  • VDC 12V (on request) = 12 – 16 VDC

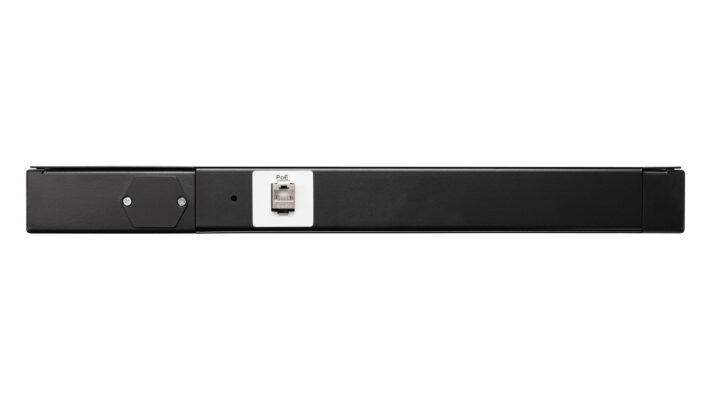

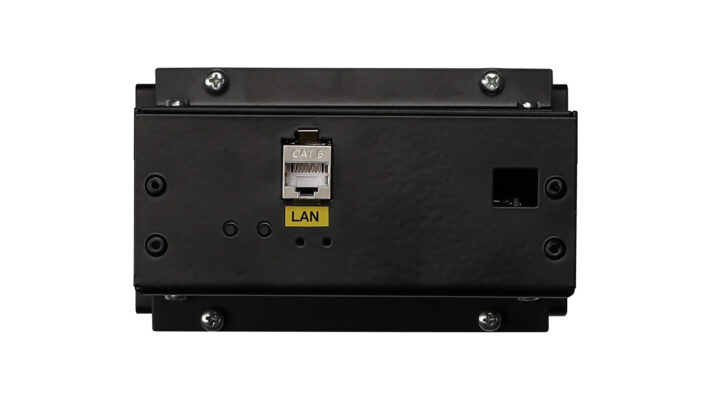

  • PoE version = PoE (IEEE 802.3af class 0)
    PoEclass version = PoE (IEEE 802.3af class 3)

Optional components:

  • GPS or DCF 77 radio signal receiver
  • Remote controller for clock set up

Time display

  • in 12-hour or 24-hour format, four digit or six digit format = (HH:MM or HH:MM:SS)

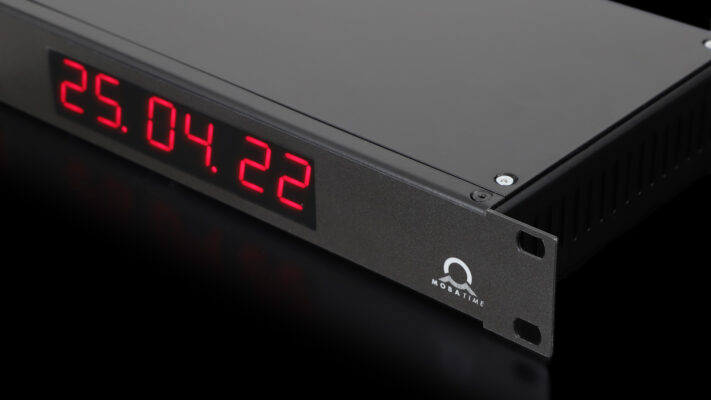

Date display

  • in four or six digit format = (DD.MM or DD.MM.YY)

Display brightness

  • Automatic or manual adjustment
DC display color_DK
