Digital Indoor Clock - DC Series
Digital Indoor Clock - DC Series

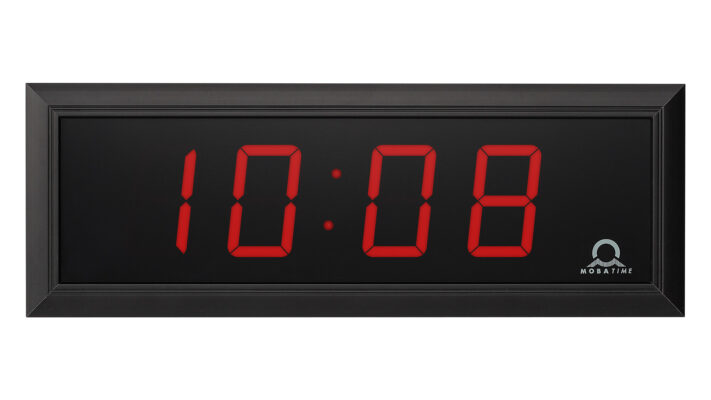

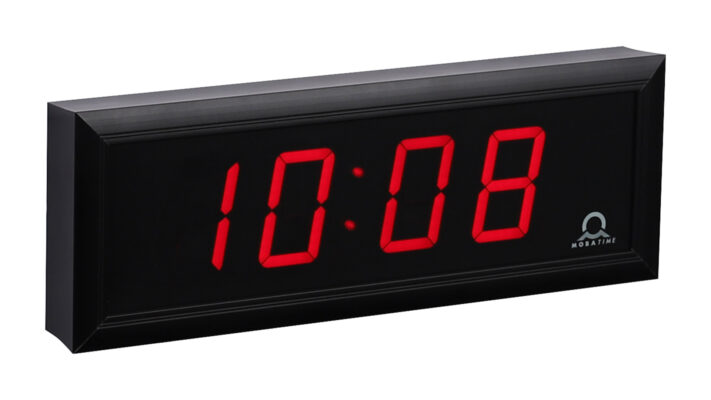

The models of the digital indoor clock DC series offer concentrated technology in a very slim housing and surprise with many functions and design variants. The customizable display and many technical possibilities enable the right solution for every application situation.
Technical features Show more Display features Show more Display colors
Download
Character heights & optimal reading distance:
- 57mm = 25-30 m
- 75mm = 30-40 m
- 100mm = 40-60 m
- 180mm = 70-100 m
- 250mm = 100-150 m
Viewing angle: 160°
Time Distribution:
- MOBALine,
- Serial telegram (RS 232, RS 485)
- IRIG / AFNOR
- DCF
- GPS (DCF current loop)
- NTP
- polarized Impulse
- WiFi version (2.4/5.0GHz), synchronized through NTP

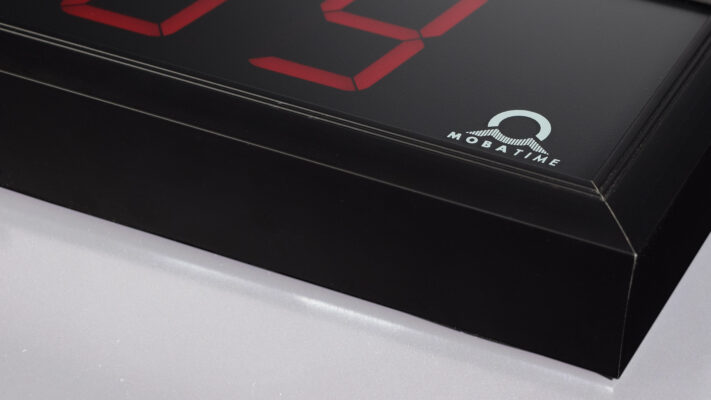

Housing materials:
- Aluminium with surface finish (black or silver anodized)*
- *Special colors on request
Cover glass:
- Anti-reflective plexiglass cover
Degree of protection:
- IP 40
- IP 54 or IP 65 (optionally)

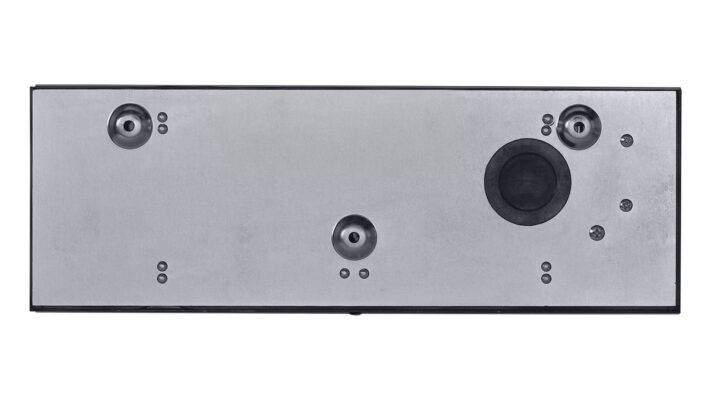

Installation possibilities:
- wall mounting (Single-sided)
- wall bracket (Double-Sided)
- ceiling suspension (Double-Sided)
Power Supply:
- Standard = 100 – 240 VAC, 50 – 60 Hz
- VDC (on request) = 18 – 56 VDC (18 – 40 VAC)
- VDC 12V (on request) = 12 – 16 VDC
- PoE version = PoE (IEEE 802.3af class 0)
PoEclass version = PoE (IEEE 802.3af class 3)
Optional components:
- GPS or DCF radio signal receiver
- Various types of temperature, pressure and humidity sensors
- Keyboard for stopwatch control, connected via 5m cable
- Remote controller for clock set up and stopwatch control
Optional calendar clock version:
- Code: DC.100x.6/57.4.R.N.N.PoE (Drawing can be found under Downloads “Further Documentation”)
- Digit size 100 mm, 6 digits (HH:MM:SS) and 57 mm, 4 digits (DD.MM)

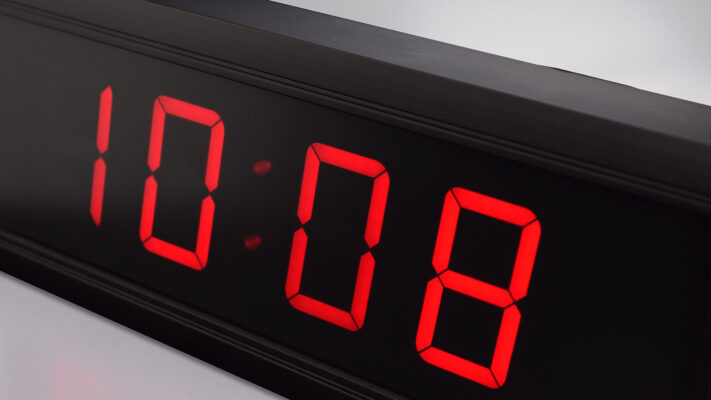

- Red 7-segment LED display (other options on request and additional cost)
- Single-sided
- Wall surface mounting
- Synchronization by NTP, PoE powered
- IP 40 casing. Case body size (approx.): 728×268.5×39 mm
- Viewing distance:< 50m
- Net weight 5.5 kg
Time display

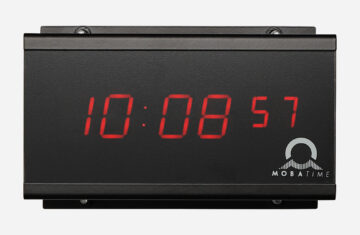

- in 12-hour or 24-hour format, four digit or six digit format = (HH:MM or HH:MM:SS)
Date display
- in four or six digit format = (DD.MM or DD.MM.YY)
Temperature display
- Celsius or Fahrenheit
Pressure display
Humidity display
Stopwatch function
- count up to 24 hours, countdown from set value, display of time intervals, freezing of display
Display brightness
- Automatic or manual adjustment
