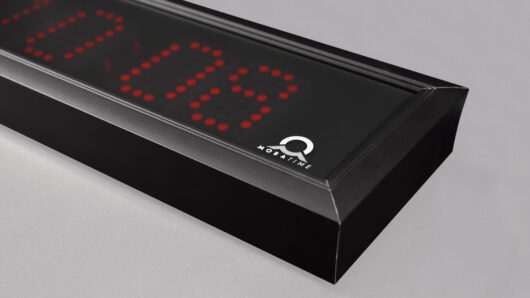

digital indoor clock - DK Series

The calendar clock simultaneously displays information about time and date. The date information can be displayed in one of 16 languages. One single display unit can be selected to alternate between 3 different languages.

Character heights & optimal reading distance:

  • 57mm = 25-30 m

Time Distribution:

  • MOBALine,
  • Serial telegram (RS 232, RS 485)
  • IRIG / AFNOR
  • DCF 77
  • GPS (DCF current loop)
  • Quartz
  • NTP
  • WTD
  • polarized Impulse

Housing materials:

  • Aluminium with surface finish (black powder coated)*
  • *Special colors on request

Cover glass:

  • Anti-reflective plexiglass cover

Degree of protection:

  • IP 40

Installation possibilities:

  • wall mounting (Single-sided)
  • wall bracket (Double-Sided)
  • ceiling suspension (Double-Sided)

Power Supply:

  • Standard = 100 – 240 VAC, 50 – 60 Hz
  • VDC (on request) = 24 VDC ± 20%
  • PoEclass version = PoE (IEEE 802.3af class 3)

Optional components:

  • GPS or DCF 77 radio signal receiver
  • Various types of temperature sensors
  • Keyboard for stopwatch control, connected via 5m cable
  • Remote controller for clock set up and stopwatch control

Time display

  • in 12-hour or 24-hour format, four digit or six digit format = (HH:MM or HH:MM:SS)

Date display

  • weekday (3 characters)
  • display of month (8 characters)

Location display

  • possibility to setting up the world time zones
  • the display can cycle between up to five different places and display actual time and city name

Temperature display

  • Celsius or Fahrenheit

Stopwatch function

  • count up to 24 hours, countdown from set value, display of time intervals, freezing of display

Display brightness

  • Automatic or manual adjustment
