Network Master clock - DTS 4806.masterclock

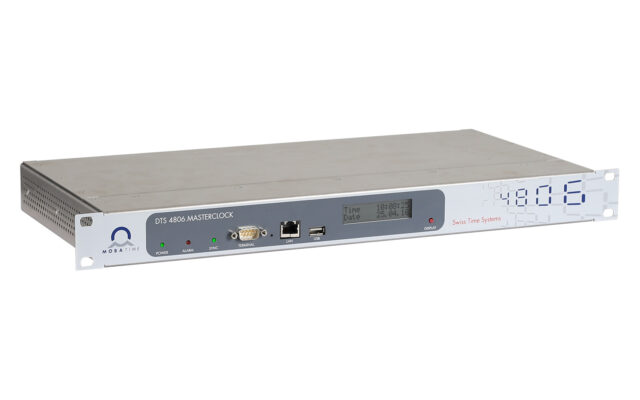

Mobatime dts4806-3 NTP Masterclock side view display Polarized Impulses DCF mobaline seriel telegram
Mobatime dts4806-3 NTP Masterclock side view display Polarized Impulses DCF mobaline seriel telegram Mobatime dts4806-1 NTP Masterclock front view display Polarized Impulses Mobaline DCF seriell telegram Mobatime dts4806-2 NTP Masterclock back view outputs Polarized Impulses mobaline seriel telegram DCF Mobatime dts4806-4 NTP Masterclock detail view input DCF mobaline Polarized Impulses Mobatime dts4806-5 NTP masterclock back view outputs DCF mobaline Polarized Impulses,

Network Master clock - DTS 4806.masterclock

The Network Master Clock DTS 4806 is developed especially for a network environment. It is able to control conventional impulse clocks, self-setting MOBALine slave clocks, and is used as an accurate NTP time reference (time server) for computer systems.

Get an offer Learn more
Oscillator type:XO
1 LAN port (RJ45):provides NTP (< 3'000 requests/s)
Outputs:1x DCF/pulse/frequency current loop output / 6x MOBALine / 1x serial output DCF active / Polarized Impulses /
High precision time:Time reception from GPS
Show more
IP configDHCP, static IP
Power supplyAC input: 90 - 240 VAC / 50 - 60 Hz / max. 30 VA (typical < 5 VA, without ext. load) / DC input: 24 - 28 VDC / 1.5 A (28 V required for MOBALine)
AccuracyGPS (DCF input) to NTP server: typical < +/- 0.5 ms, NTP client to NTP server: typical < +/- 0.5 ms
Operating controlSerial terminal via RS 232 (front side, sub-D 9p male) / Telnet or SSH via LAN. Also possible with SNMP or MOBA-NMS
Time-keepingSynchronized with GPS
