digital indoor clock - ECO-M-DC series

The ECO-M-DC series is a elegant and very slim digital clocks for displaying time and date. High protection degree IP54 as standard for all versions. 7-segment LED display of high luminance provide for excellent readability from various angles of view.

Character heights & optimal reading distance:

  • 57mm = 25-30 m
  • 75mm = 30-40 m
  • 100mm = 40-60 m

Time Distribution:

  • NTP
  • IRIG/AFNOR
  • MOBALine
  • RS 485

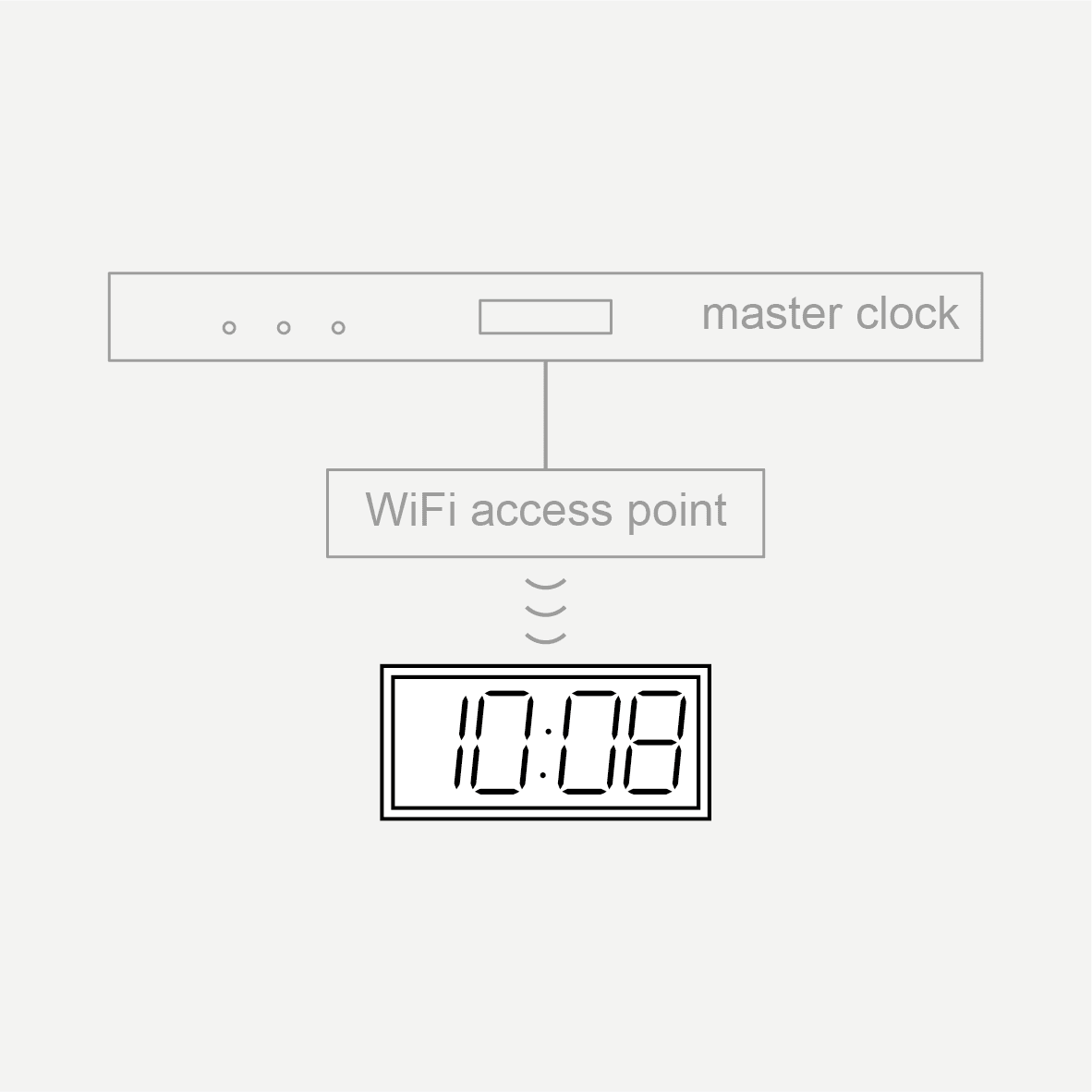

  • WiFi version (2.4/5.0GHz), synchronized through NTP

Housing materials:

  •  Aluminium with surface finish (black powder coated)*
  • *Special colors on request

Cover glass:

  •  Anti-reflective plexiglass cover

Degree of protection:

  • IP 54

Installation possibilities:

  • wall mounting (Single-sided)
  • wall bracket (Double-Sided)
  • ceiling suspension (Double-Sided)

Power Supply:

  • Standard = 100 – 240 VAC, 50 – 60 Hz
  • VDC (on request) = 24 VDC
  • PoE version = PoE (IEEE 802.3af class 0)

Optional components:

  • GPS or DCF 77 radio signal receiver
  • Remote controller for clock set up

Time display

  • in 12-hour or 24-hour format, four digit or six digit format = (HH:MM or HH:MM:SS)

Date display

  • in four or six digit format = (DD.MM or DD.MM.YY)

Display brightness

  • Automatic or manual adjustment
DC_ECO-DC, SLH-DC_ECO-SLH-DC_ ECO-M-DC display color
