Digital Indoor Clock - ECO-M-DK Series
Digital Indoor Clock - ECO-M-DK Series

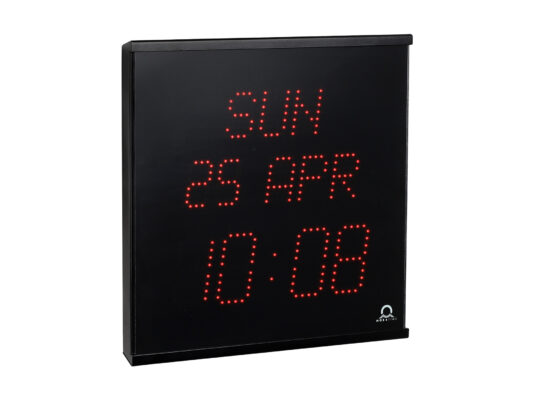

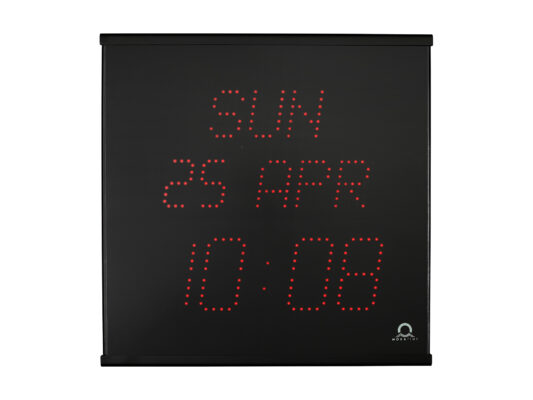

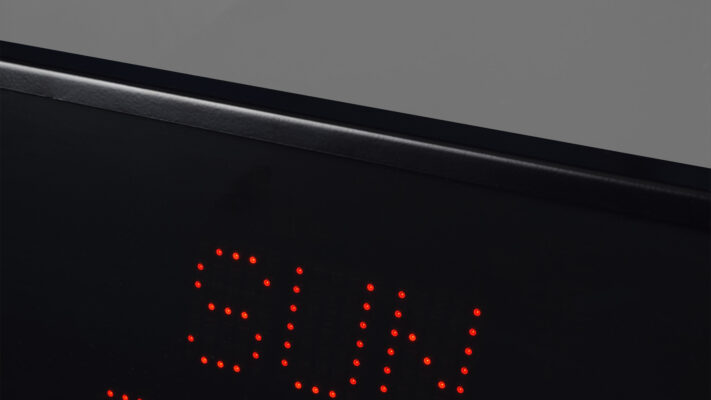

The ECO-M-DK is a elegant and very slim digital indoor clocks for displaying hours, minutes and date in different languages.
Technical features
Show more
Display features
Show more

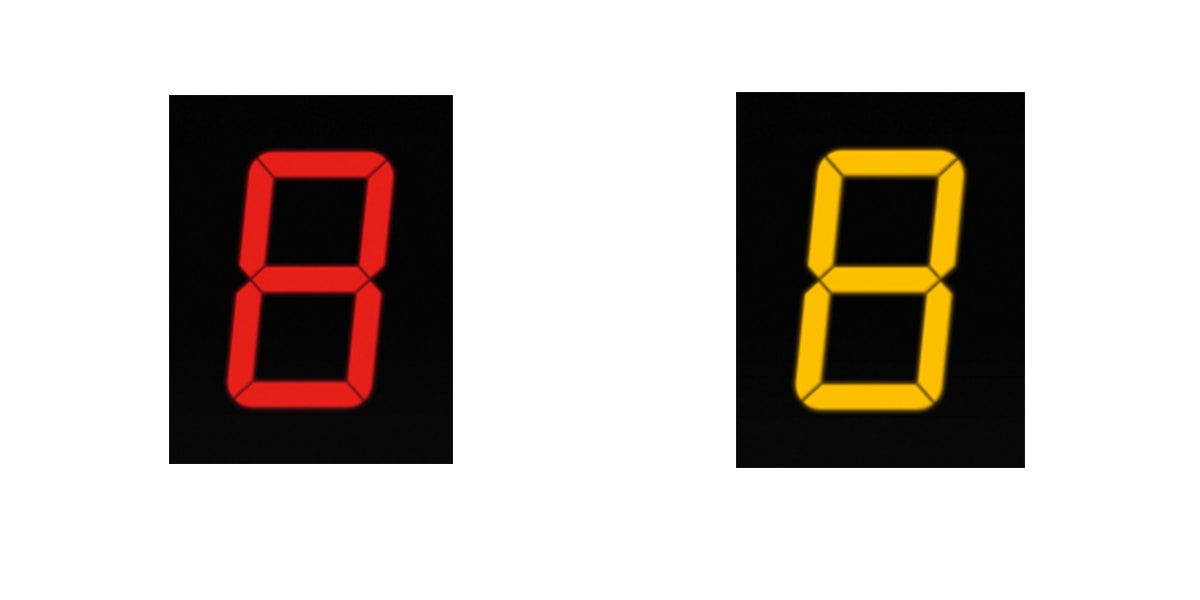

Display colors
Download
Character heights & optimal reading distance:
- 75/50mm = 30-40 m
Viewing angle: 160°
Time Distribution:
- MOBALine,
- Serial telegram (RS 485)
- DCF 77
- GPS (DCF current loop)
- Quartz
- NTP
- polarized Impulse

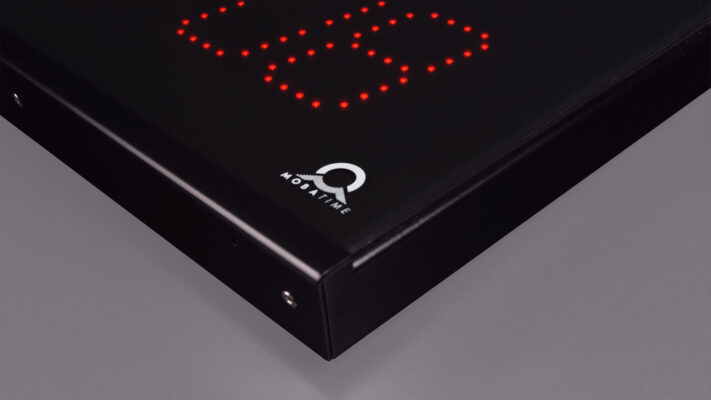

Housing materials:
- Aluminium with surface finish (black powder coated)*
- *Special colors on request
Cover glass:
- Anti-reflective plexiglass cover
Degree of protection:
- IP 54

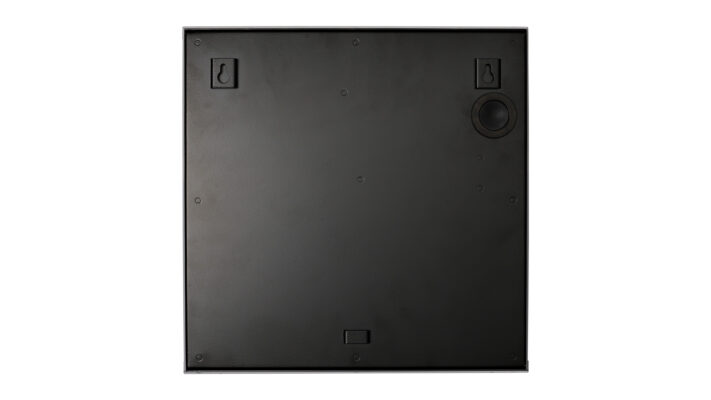

Installation possibilities:
- wall mounting (Single-sided)
- wall bracket (Double-Sided)
- ceiling suspension (Double-Sided)
Power Supply:
- Standard = 100 – 240 VAC, 50 – 60 Hz
- PoEclass version = PoE (IEEE 802.3af class 3)
Optional components:
- GPS or DCF 77 radio signal receiver
- Various types of temperature sensors
- Keyboard for stopwatch control, connected via 5m cable
- Remote controller for clock set up and stopwatch control
Time display
- in 12-hour or 24-hour format, four digit format = (HH:MM)
- AM/PM can be displayed
Date display
- day of week (3 characters)
- day of month (2 digits)
- month (3 characters)
Temperature display
- Celsius or Fahrenheit
Stopwatch function
- count up to 24 hours, countdown from set value, display of time intervals, freezing of display
Display brightness
- Automatic or manual adjustment
