The ECO-SLH-DC series are optimally suited for use in operating rooms, clean room environments, chemical plants, labs, swimming and fitness centres, as well as in the food and beverage industry, canteen, kitchens, etc.

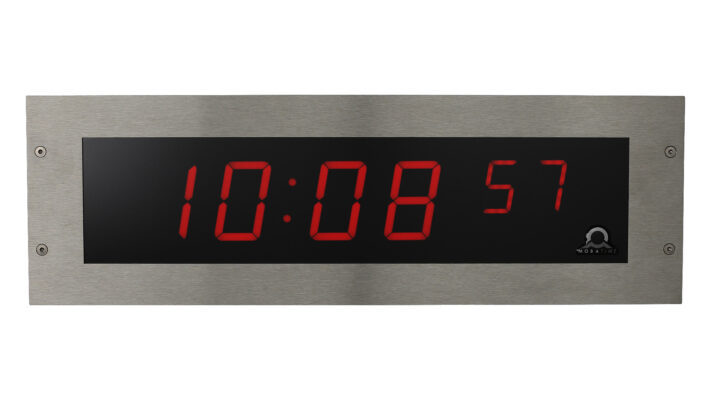

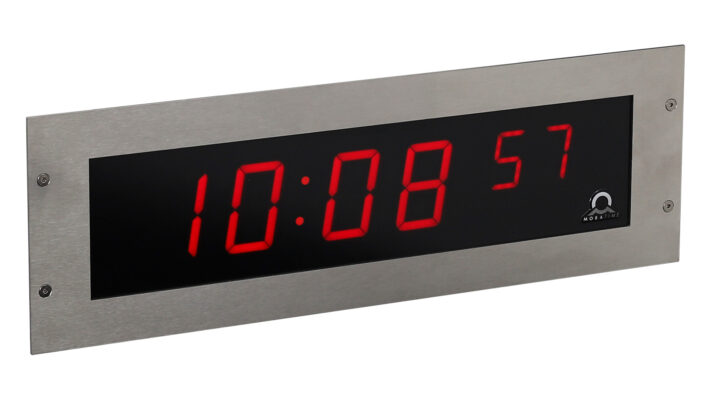

digital indoor clock - ECO-SLH-DC Series

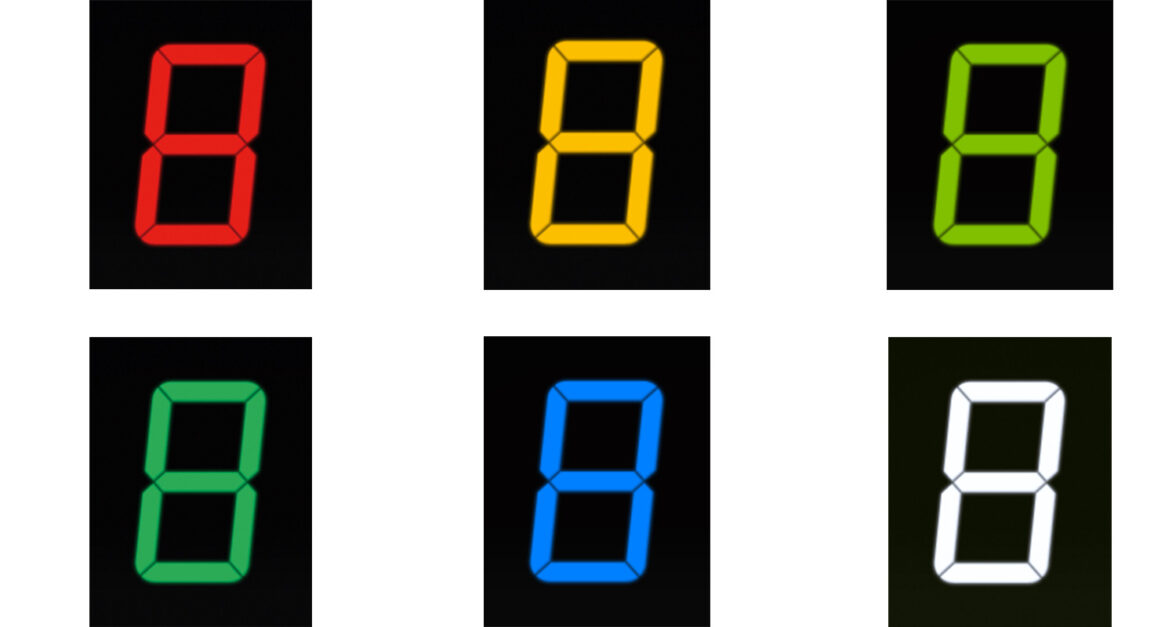

Technial features Display features Display colors
Downloads
Character heights & optimal reading distance:
- 57mm = 25-30 m
- 57/38mm = 25-30m
- 100mm = 40-60 m
- 100/57mm = 40-60 m
Time Distribution:
- MOBALine
- Seriel telegram (RS 232, RS 485)
- IRIG / AFNOR
- DCF 77
- GPS (DCF current loop)
- NTP
- polarized Impulse
Housing materials:
- stainless steel housing
Cover glass:
- Anti-reflective polycarbonate
Degree of protection:
- IP 54

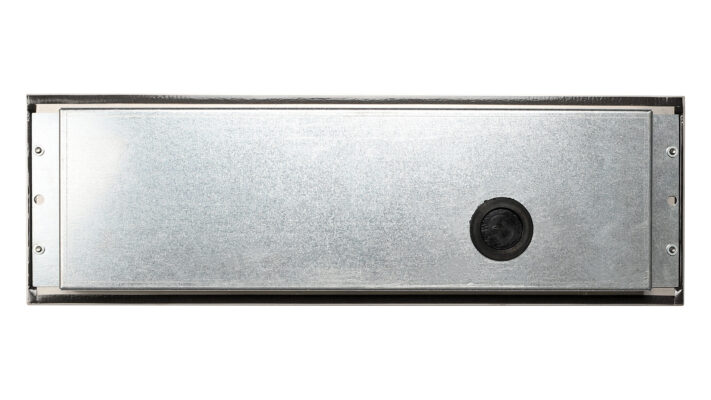

Installation possibilities:
- flush mounting (Single-sided)
Power Supply:
- Standard = 100 – 240 VAC, 50 – 60 Hz
- VDC (on request) = 18 – 56 VDC (18 – 40 VAC)
- VDC 12V (on request) = 12 – 16 VDC
- PoEclass version = PoE (IEEE 802.3af class 3)
Optional components:
- GPS or DCF 77 radio signal receiver
- Various types of temperature, pressure and humidity sensors
- Keyboard for stopwatch control, connected via 5m cable
- Remote controller for clock set up and stopwatch control
Time display
- in 12-hour or 24-hour format, four digit or six digit format = (HH:MM or HH:MM:SS)
Date display
- in four or six digit format = (DD.MM or DD.MM.YY)
Temperature display
- Celsius or Fahrenheit
Pressure display
Humidity display
Stopwatch function
- count up to 24 hours, countdown from set value, display of time intervals, freezing of display
Display brightness
- Automatic or manual adjustment
Leaflets
LE-801316.20-ECO-SLH-DC-Digitaluhr.pdf
LE-801316.20-ECO-SLH-DC-Digitaluhr.pdf Language: EN
Type: PDF
Size: 587.1 KB
LD-801316.20-ECO-SLH-DC-Digitaluhr.pdf
Language: DE
Type: PDF
Size: 593.3 KB
LF-801316.20-ECO-SLH-DC-Digitaluhr.pdf
Language: FR
Type: PDF
Size: 596.0 KB
LS-801316.20-ECO-SLH-DC-Digitaluhr.pdf
Language: ES
Type: PDF
Size: 587.6 KB
