GFF series TFT passenger information displays
GFF series TFT passenger information displays
The GFF series information panels are designed primarily for displaying current timetables, traffic information, advertising messages or multimedia.
The full-color and fully graphic display with fine pixel pitch perfectly displays text, graphic symbols, images, videos, websites and live broadcasts. High brightness guarantees excellent readability even in sunlight. Thanks to the special Text-To-Speech module, our information systems can also be used by blind people. They are provided with the necessary traffic information using synthetic voice output. Touch screen option.
✓ full-color RGB display
✓ automatic brightness control
✓ suitable for continuous operation 24/7
✓ LAN, WiFi, LTE or optical options
✓ outdoor design

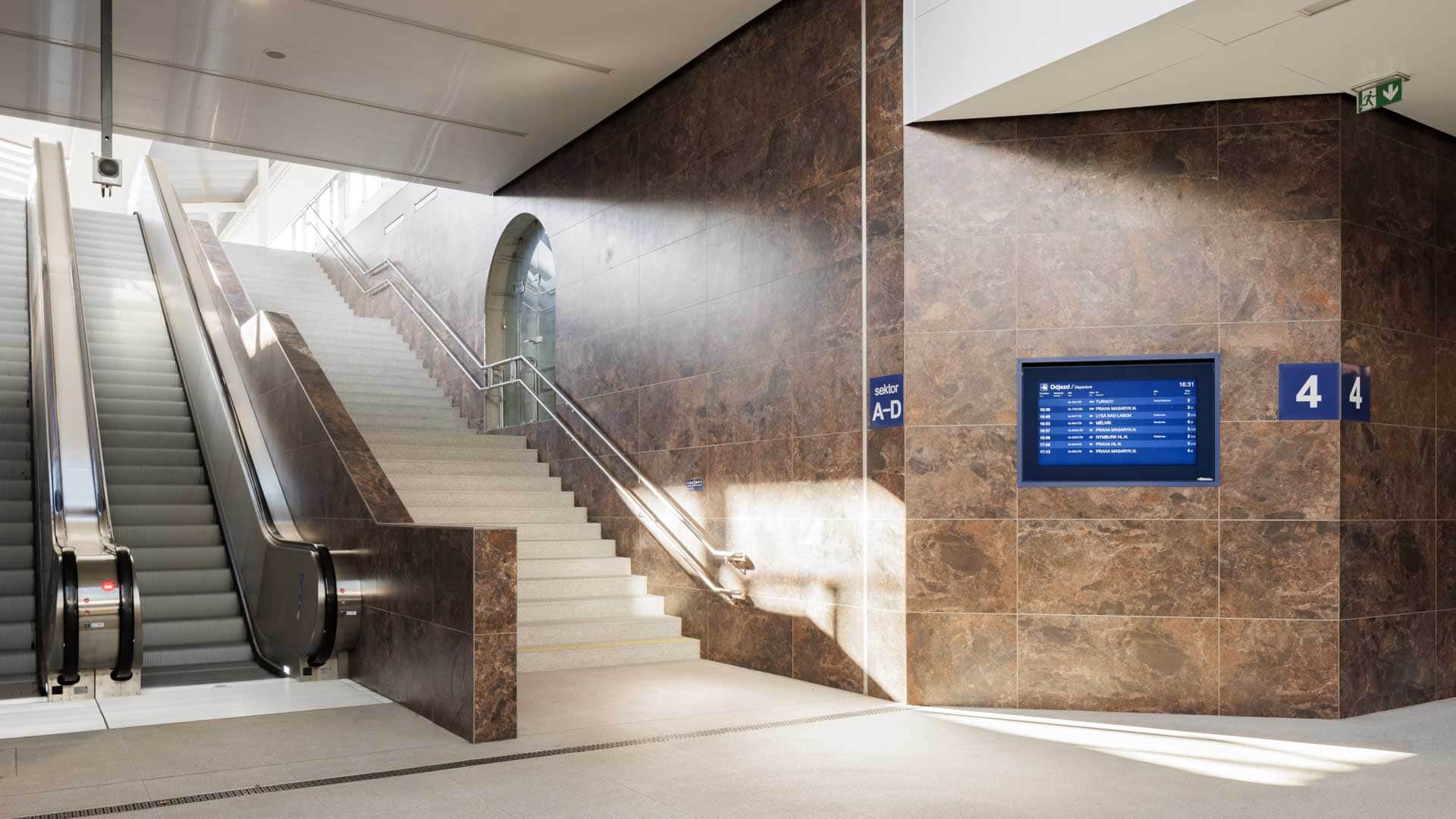

TFT information panels of the GFF series are used mainly at bus stops, public transport terminals, adjacent parking lots, etc.
| Display type | full color TFT display |
|---|---|
| Colors | 16.7 million colors |
| Resolution | 1920 x 1080 pixels |
| Display diagonal | 43'' |
| Display brightness | 500 or 1,500 nits |
| Viewing angle | 178°/178° |
| Frame rate | 50-60 Hz |
| Contrast | 3000:1 or 4000:1 |
| Ethernet connectivity | LAN, WiFi, LTE or optical |
| Touch screen option | Yes |
| Glass specification | highly resistant laminated safety glass (LSG) 6.8 mm thick, with anti-reflective treatment |
| Hardness rating | IK10 |
| Power supply | 100–240 VAC |
| Display execution | horizontal screen orientation |
| Mounting | recessed installation in a niche |
| Working temperature | -20 to +40 °C (depending on panel type) |
| Relative humidity | 10 ÷ 90%, non-condensing |
| Protection class | IP 54 |
Yes. MOBATIME offers different display sizes, mounting concepts and configurations to meet the requirements of individual projects. Depending on the product family, solutions can include wall-mounted, flush-mounted, free-standing, single-sided or double-sided installations as well as additional integration options.
Depending on the display technology, MOBATIME Passenger Information Displays can present departures, arrivals, destinations, delays, platform information, service messages, pictograms, graphics and other passenger information. TFT and LED solutions can also support richer graphical or multimedia content depending on the configuration.
Yes. MOBATIME offers display solutions for both indoor and outdoor environments. Depending on the technology and product series, displays can be configured for station halls, platforms, bus stops, terminals and other public transport areas.
The right technology depends on the application. LED displays are ideal where high visibility, long viewing distances and demanding outdoor conditions are important. TFT displays are best suited to high-resolution, full-colour content, multimedia and shorter viewing distances. E-Ink displays are especially suitable for energy-efficient applications with detailed information that changes periodically.
