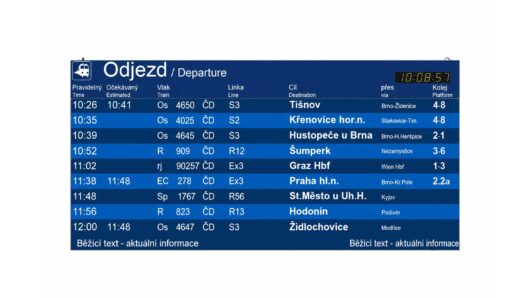

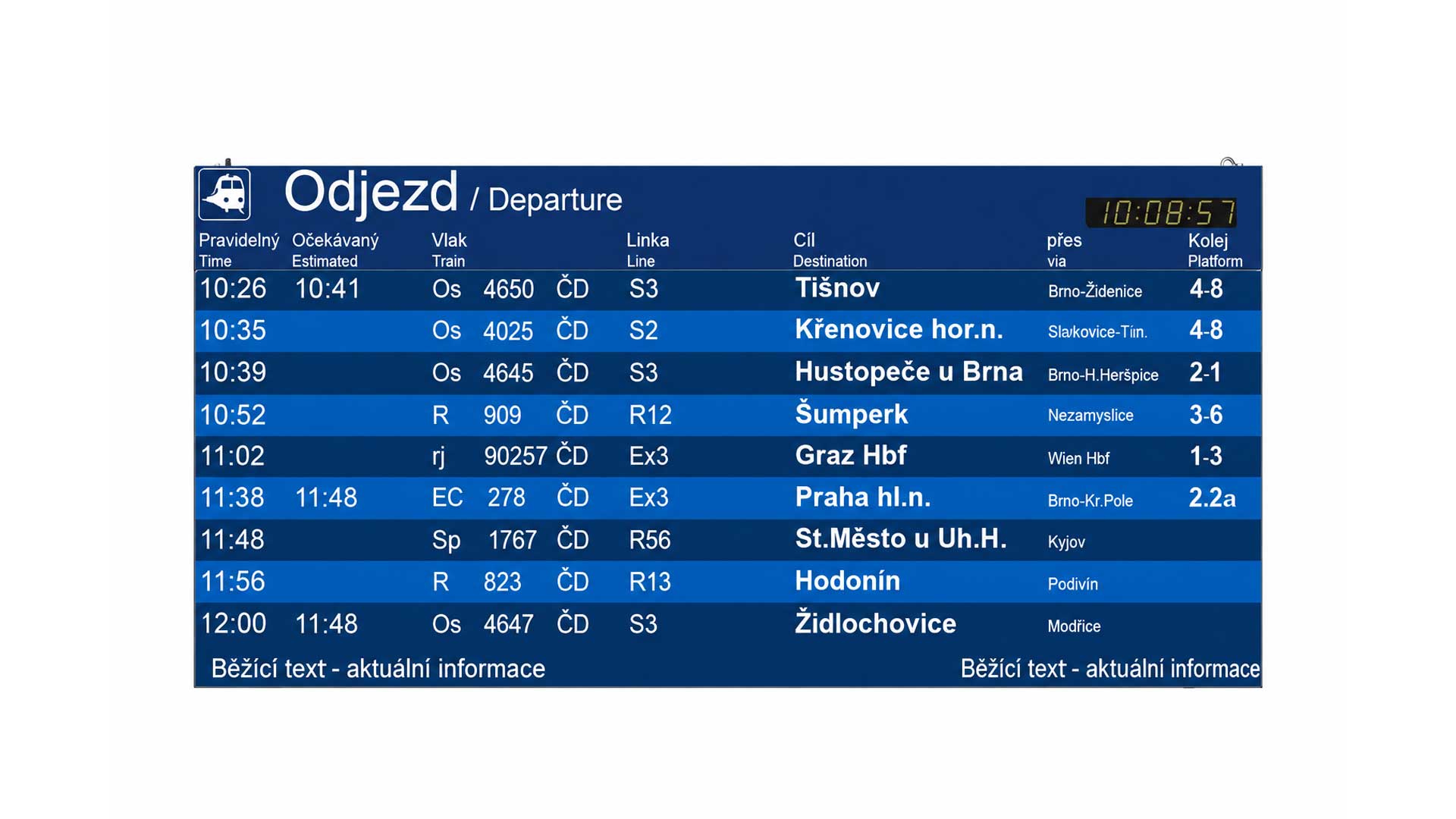

GXO series LED passenger information displays
GXO series LED passenger information displays
The GXO series of cabinet-based information panels are digital LED information panels specially designed for train stations and railway stations. The full-matrix LED displays provide a flexible solution for information systems providing passengers with up-to-date timetable and traffic information.
The layout of information on the LED display is freely configurable with the option of displaying text, graphic symbols, images, videos, websites and live broadcasts. Thanks to the Text-To-Speech module, our information systems can also be used by blind people. The necessary traffic information is provided to them using synthetic voice output. The full-color RGB LED display with high brightness ensures perfect readability even in direct sunlight. The faithful and vivid colors of the display underline its high quality.
The panel frame is made of aluminum profiles. Single-sided or double-sided design possible. Possibility of manufacturing with fixed descriptions, platform number, digital or analog clock. A comprehensive set of optional components is available.
✓ specially designed for train stations and railway stations
✓ clear information for passengers
✓ possibility of displaying text, graphic symbols, images, videos, websites and live broadcasts
✓ full-color RGB LED display with high brightness
✓ Text-To-Speech module for the blind
✓ single-sided or double-sided design
✓ no size limit
✓ suitable for exterior use
✓ comprehensive set of optional components
LED information panels of the GXO series will be used mainly at train stations and railway stations.
| Display type | full-matrix RGB LED display |
|---|---|
| Pixel pitch | 2.50 mm |
| Basic module size | 250 × 250 mm |
| Display brightness | 4,500 cd/m² |
| Viewing angle | ±70° × ±60° |
| Frame rate | 50 Hz |
| Refresh rate | 1,920 Hz |
| Color depth | 24 bit |
| Contrast | 3,000:1 |
| Lifespan | ≥ 100,000 hours (70% brightness) |
| Ethernet connectivity | RS-485 / WiFi / LTE / optics |
| Power supply | 100–240 VAC |
| Display execution | single-sided or double-sided |
| Mounting | wall mounting, ceiling suspension or side mounting |
| Working temperature | -20 to +40 °C (depending on panel type) |
| Relative humidity | 10 ÷ 90%, non-condensing |
| Protection class | IP 54 |
Yes. MOBATIME offers different display sizes, mounting concepts and configurations to meet the requirements of individual projects. Depending on the product family, solutions can include wall-mounted, flush-mounted, free-standing, single-sided or double-sided installations as well as additional integration options.
Depending on the display technology, MOBATIME Passenger Information Displays can present departures, arrivals, destinations, delays, platform information, service messages, pictograms, graphics and other passenger information. TFT and LED solutions can also support richer graphical or multimedia content depending on the configuration.
Yes. MOBATIME offers display solutions for both indoor and outdoor environments. Depending on the technology and product series, displays can be configured for station halls, platforms, bus stops, terminals and other public transport areas.
The right technology depends on the application. LED displays are ideal where high visibility, long viewing distances and demanding outdoor conditions are important. TFT displays are best suited to high-resolution, full-colour content, multimedia and shorter viewing distances. E-Ink displays are especially suitable for energy-efficient applications with detailed information that changes periodically.
