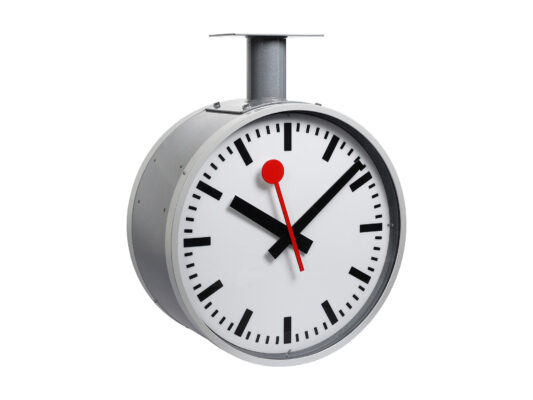

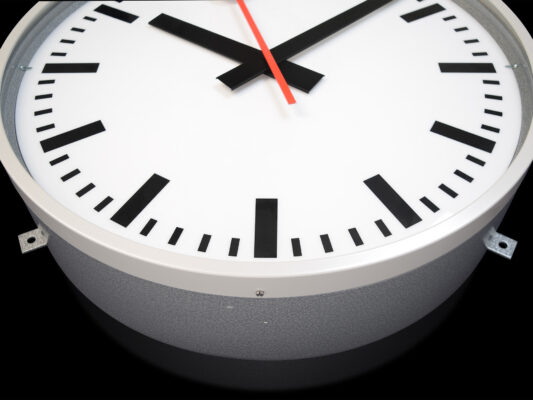

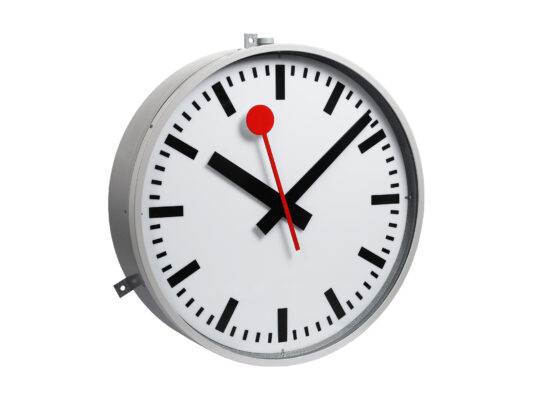

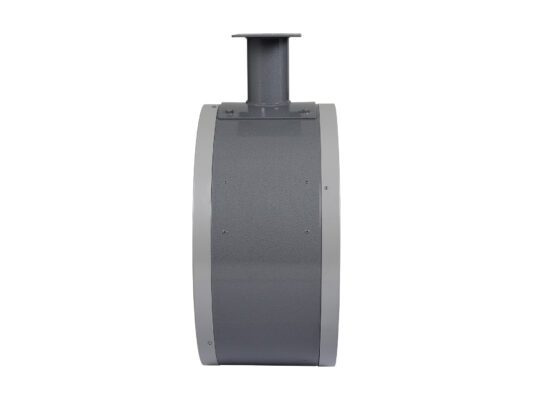

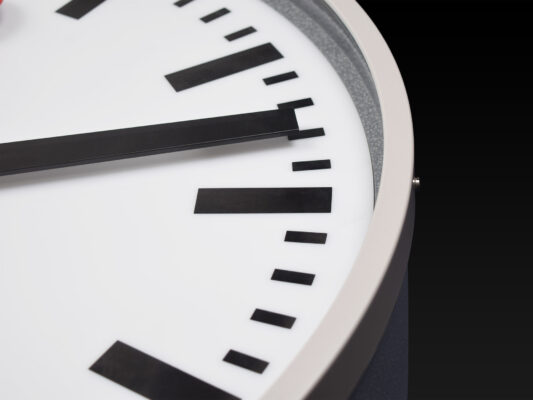

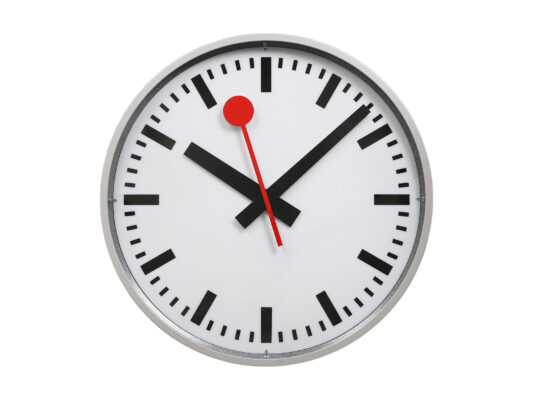

Analogue Outdoor Clock - Metro

The Metro outdoor clock has been used by various Swiss railway companies for decades. Thanks to its robust construction and a large number of different movements, it has proven itself to this day.

Posted on
by
Diameter & optimal reading distance:

  • ø 40cm = 45-50m
  • ø 50cm = 55-60m
  • ø 60cm = 65-70m
  • ø 80cm = 85-90m
  • ø 100cm = 105-120m

Time Distribution:

  • Polarized Impulses
  • MOBALine
  • NTP
  • Serial
  • IRIG / AFNOR
  • DCF 77, DCF active
  • GPS (DCF current loop)
  • Quartz
  • WTD wireless time distribution

Housing materials:

  • standard metallic housing (Aluminum, RAL 9006)
  • Special housing colors on request

Cover glass:

  • mineral glass cover
  • tempered glass cover
  • polycarbonate glass cover

Degree of protection:

  • IP 54

Power Supply:

  • MOBALine
  • PoE
  • Mains supply
  • Extra Low Voltage
  • Battery



Important notice: Dial 100 (with signalling disc on second hand) is not available in Switzerland.
