NCC V2 – Network Clock Controller

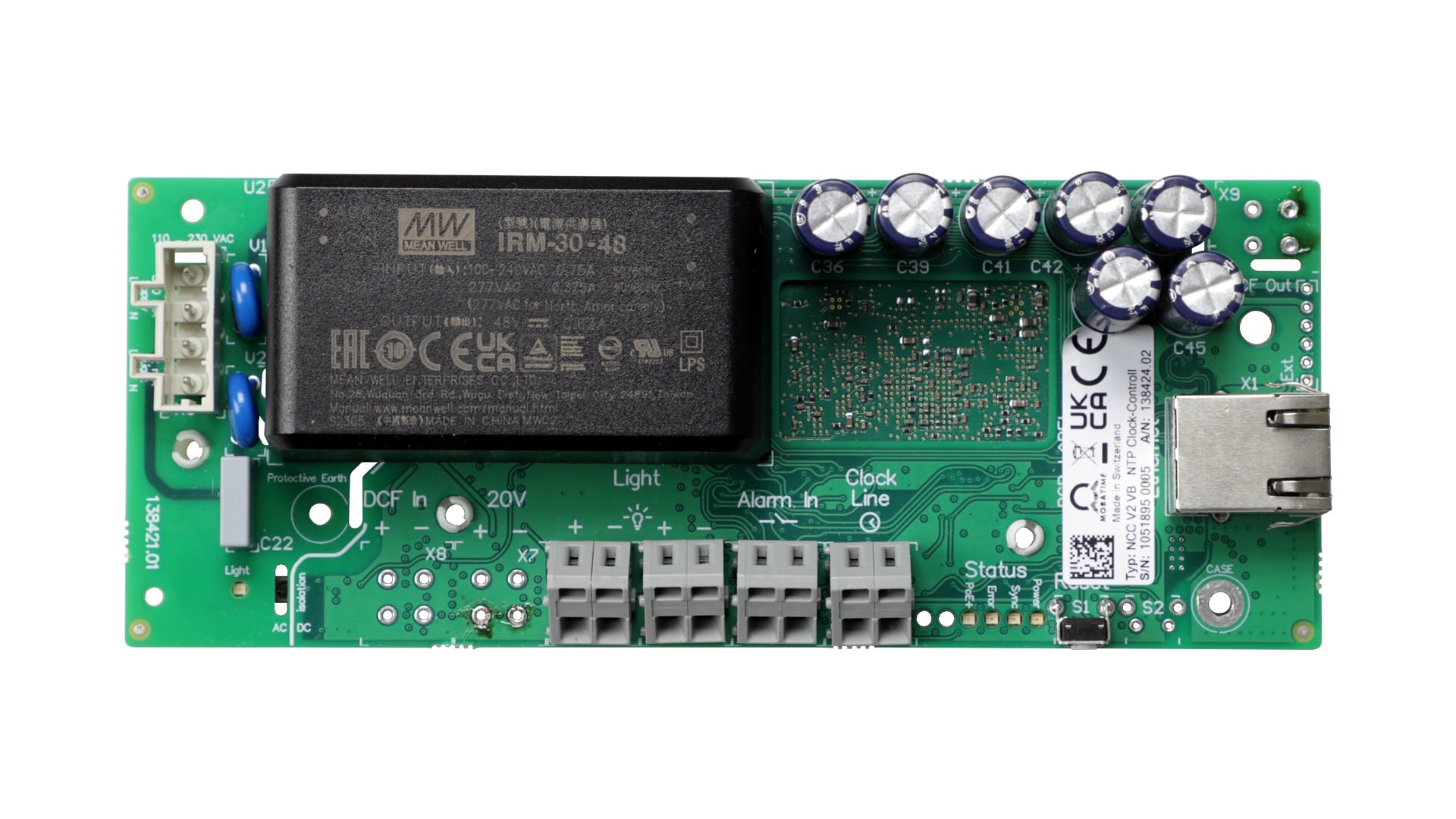

MOBATIME NCC V2 - product image full size
MOBATIME NCC V2 - product image full size

NCC V2 – Network Clock Controller

The NCC V2 is a network interface for single- or double-sided clocks. It provides a cyber secure network connection including a web interface, which allows the clock to be synchronized via NTP. Inside the clocks it controls and monitors up to two movements, the LED illumination and optionally a connected impact sensor.

Get an offer Learn more
Synchronization:

  • NTP synchronized
  • Up to 4 NTP servers configurable

MOBALine output for movements:

  • Drives up to two movements
  • Control of the different running modes for the second and minute hand: step wise or continuous
  • Monitoring of the movements
  • Control of operation mode: normal or 12:00 position

Illumination:

  • Drives one or two illumination circuits
  • Brightness configurable via web interface
  •  The illumination is controlled by the following means:
    • manually on/off
    • controlled by a switch program (uploaded as XML-file, createdbwith Switch Editor Basic)
    • illumination input for an 230VAC control signal (AC and VB
      variants only)
    • Supervision of the LED circuits including error reporting in case of failures

Power supply:

  • PoE or PoE+ power supply via network (PoE limited power)
  • Mains power Input (AC and VB variants only)
  • Power reserve for running clocks to 12h position if power is lost (NCC V2 VB variant only)

Network features:

  • Integrated web interface for device configuration and monitoring
  • Device monitoring
    • Syslog (RFC 5424)
    • SNMP get/traps (v2c/v3), SNMPv3 with authentication and encryption
  • IP configuration:
    • IPv4 (DHCP, static IP), IPv6 (autoconfiguration, DHCPv6, static IP)
    • SSDP (Simple Service Discovery Protocol) for device discovery
    • RESTCONF API for monitoring and configuration

Cyber Security:

  • Secure by design: hardware-based security (secure boot), encrypted user data, encrypted and signed firmware image
  • Secure access to the device with HTTPS
  • Security features according IEC 62443-4-2
  • Individual random default password
Show more
Power supply100 – 240VAC, 50/60Hz / max. 30W1 / PoE: max. 15.5W / PoE+: max. 25.4W
Operating Temperature-30 to +70°C (0 to 95% relative humidity, non-condensing)
StandardsEN 61000-6-2 / EN 61000-6-4 / EN 50121-4 / EN 62368-1
Degree of protectionIP20
WeightNCC V2: 160g / NCC V2 AC: 220g / NCC V2 VB: 240g
Dimensions165 x 65 x 35mm
Illumination700 mA @ 24V (brightness limited when using 15.4W PoE supply)
SignalizationLEDs: power, synchronization, error, illumination status
Clock line functionalitySupports synchronizing, powering and monitoring MOBALine movements. Max. 100 mA @ 20V
Show more
NCC V2

  • Power supply: PoE/PoE+
  • Illumination switch: None
  • Power reserve: None
  • Shock detection: None

NCC V2 AC

  • Power supply: PoE/PoE+, Mains
  • Illumination switch: Yes
  • Power reserve: None
  • Shock detection: None

NCC V2 VB

  • Power supply: PoE/PoE+, Mains
  • Illumination switch: Yes
  • Power reserve: Yes
  • Shock detection: Yes
