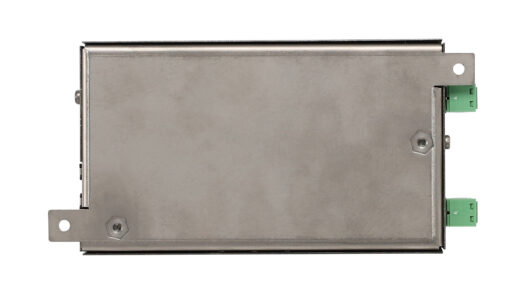

NMI – Network MOBALine Interface

The product for the fusion of NTP and MOBALine technology is the Network MOBALine Interface. Its interfacing characteristics help to combine NTP and MOBALine installation and to benefit from the advantages of both technologies.

Main function:

  • NTP synchronization (Multicast or Unicast)
  • Synchronization of a conventional master clock via DCF current loop

Inputs:

  • NTP

Outputs:

  • DCF current loop or DCF active
  • MOBALine for up to 12 indoor clocks

Power supply:

  • PoE ¬†powered, class 2 (Power over Ethernet)

Features:

  • Simple cabling of the last meters (MOBALine 2-wire, free topology)
  • Monitoring of up to 12 MOBALine movements possible

Configuration, administration and monitoring by MOBA-NMS
