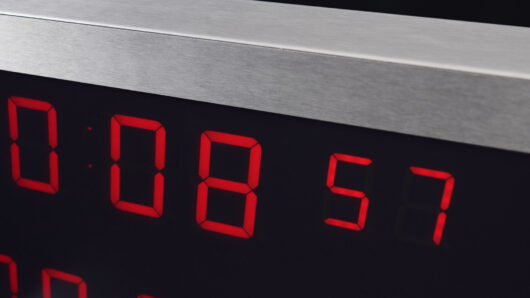

Digital indoor clock - SLH-DC series

Build for unique Requirements. The model SLH-DC series is optimally suited for the use in operating theaters, clean room environments, chemical plants, laboratories, swimming and fitness centers, as well as the food and beverage industry, canteen kitchens etc.

Character heights & optimal reading distance:

  • 57mm = 25-30 m
  • 57/38mm = 25-30m
  • 100mm = 40-60 m
  • 100/57mm = 40-60 m

Time Distribution:

  • MOBALine
  • Serial telegram (RS 232, RS 485)
  • IRIG / AFNOR
  • DCF 77
  • GPS (DCF current loop)
  • Quartz
  • NTP
  • WTD wireless time distribution
  • polarized Impulse
  • WiFi version, synchronized by NTP

Housing materials:

  • stainless steel housing

Cover glass:

  • Anti-reflective polycarbonate cover

Degree of protection:

  • IP 54

Installation possibilities:

  • wall mounting (Single-sided)
  • flush mounting (Single-sided)
  • ceiling suspension (Double-Sided)

Power Supply:

  • Standard = 100 – 240 VAC, 50 – 60 Hz
  • VDC (on request) = 18 – 56 VDC (18 – 40 VAC)
  • VDC 12V (on request) = 12 – 16 VDC
  • PoEclass version = PoE (IEEE 802.3af class 3)

Optional components:

  • GPS or DCF 77 radio signal receiver
  • Various types of temperature, pressure and humidity sensors
  • Keyboard for stopwatch control, connected via 5m cable
  • Remote controller for clock set up and stopwatch control

Time display

  • in 12-hour or 24-hour format, four digit or six digit format = (HH:MM or HH:MM:SS)

Date display

  • in four or six digit format = (DD.MM or DD.MM.YY)

Temperature display

  • Celsius or Fahrenheit

Pressure display

Humidity display

Stopwatch function

  • count up to 24 hours, countdown from set value, display of time intervals, freezing of display

Display brightness

  • Automatic or manual adjustment
DC_ECO-DC, SLH-DC_ECO-SLH-DC_ ECO-M-DC display color
