Digital Indoor Clock - Time Zones Display TZI Series
Digital Indoor Clock - Time Zones Display TZI Series
Display of World Time with the TZI Series offers the perfect solution for airports, transportation terminals, hotels and businesses that communicate at the international level. Accurate and synchronized timekeeping facilitates the management of people and projects across global zones.
Technical features
Show more
Display features
Show more

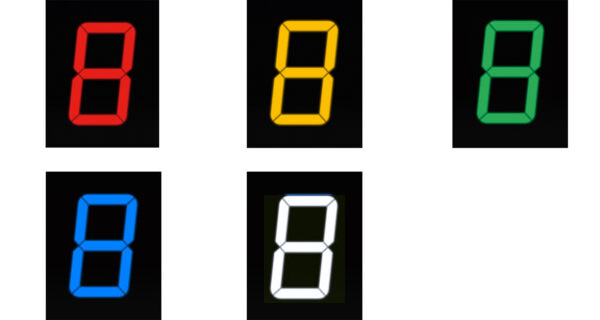

Display colors
Download
Character heights & optimal reading distance:
- 45mm (only for TZI.C) = 20-25 m
- 57mm (only for TZI, TZI.C) = 25-30 m
- 100mm (only for TZI) = 40-60 m
Viewing angle: 160°
Time Distribution:
- MOBALine
- IRIG /AFNOR
- GPS (DCF current loop)
- DCF 77
- NTP
- Quartz
- polarized impulse
- serial telegram (RS 232, RS 485)
- WiFi version (2.4/5.0GHz), synchronized through NTP
Housing materials:
- Aluminium with surface finish (black anodized)*
- *Special colors on request
Cover glass:
- Anti-reflective plexiglass cover
Degree of protection:
- IP 40
Mounting possibilities:
- wall mounting (Single-Sided)
- ceiling suspension (Double-Sided)
- customer specific mounting
Power Supply:
- Standard = 100 – 240 VAC, 50 – 60 Hz
- VDC (on request) = 18 – 56 VDC (18 – 40 VAC)
Optional components:
- GPS or DCF 77 radio signal receiver
- Remote controller for clock set up and stopwatch control
Time display
- in 12-hour or 24-hour format, four digit or six digit format = (HH:MM or HH:MM:SS)
- 7-segment LED display, circle of second marks (only for TZI.C)
Location display
- possibility to setting up the world time zones
- customer choice of time zone location and legend style
- number of time zones max. 8
- possibility: configurable location name/character size 45/71 mm
Display brightness
- Automatic or manual adjustment
LE-801345.22-TZI-Digitaluhr.pdf
