IEEE-1588 PTP Grandmaster - DTS 4163

IEEE-1588 PTP Grandmaster - DTS 4163

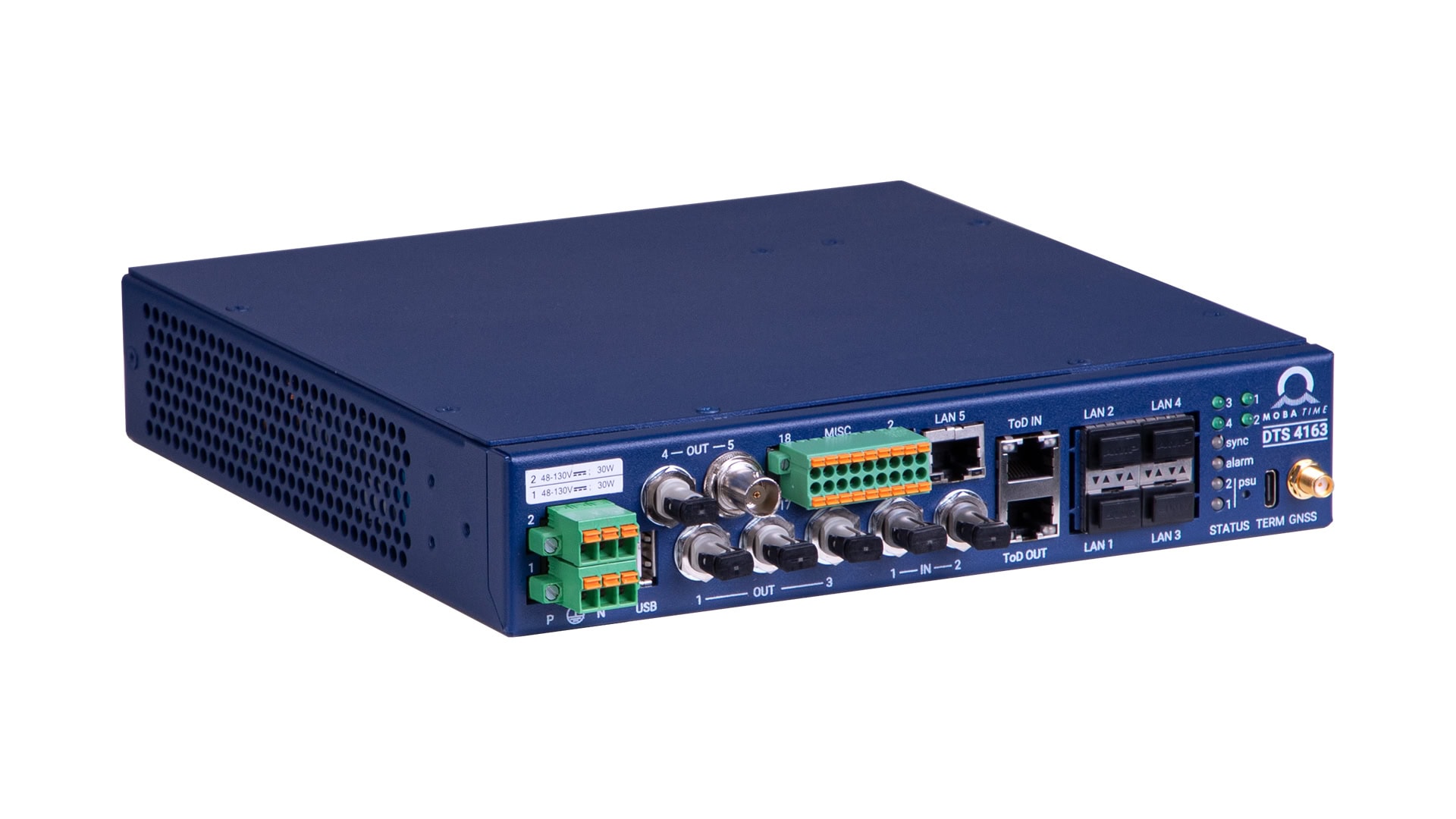

The DTS 4163.grandmaster is a PTP grandmaster specifically designed for digital substations according to IEC 61850. With its high precision and seamless redundant operation, it offers a high degree of reliability and availability.

PTP Grandmaster for IEC 61850 Digital Substations
The DTS 4163 is a primary reference time clock (PRTC) and PTP grandmaster according to IEEE 1588-2008 / PTPv2, with IEEE 1588-2019 / PTPv2.1 compability, for the highly accurate synchronization of clients.

PRP/HSR Support
The DTS 4163 features a pair of redundant interfaces (PRP/HSR) to directly connect the device as a DAN (dual attached node) with full 1Gbps bandwidth.

Full Gigabit Ethernet
Offers 4 fully PTP-capable Gigabit Ethernet ports (RJ45 or SFP), each supporting 1-step/2-step, multicast/unicast, IPv4/IPv6, Layer 2, and independent domain/profile configurations — ideal for modern segmented networks.

Cyber Security
Designed with security in mind, the system features secure boot, encrypted user data, and signed firmware. It supports secure access via SSH, SCP, SFTP and HTTPS (coming soon), according to IEC 62443-4-2 standards.

High-Performance NTP Server
The DTS 4163 can reply to more than 10‘000 NTP and SNTP requests per second (up to 600‘000 clients depending on NTP client configuration).

GNSS Receiver
The DTS 4163 can simultaneously receive all GNSS L1 systems (GPS+QZSS/SBAS, Galileo, GLONASS, BeiDou), guaranteeing utmost accuracy and availability.

Boundary Clock Capability
The DTS 4163 can be used as boundary clock to bridge different time domains using two external PTP servers and serve up to four other domains with clients.

Oscillator Options
The DTS 4163 offers different oscillator options, enabling enhanced holdover performance and long-term stability tailored to application needs.

Legacy Outputs
The DTS 4163 outputs support many legacy signals such as IRIG, ToD, DCF, pulse, and frequency.

Network Management System
The DTS 4163.grandmaster can be fully monitored, configured and controlled using the Mobatime Network Management System software (MOBA-NMS).

Show more
Oscillator type:TCXO / OCXO / Rubidium

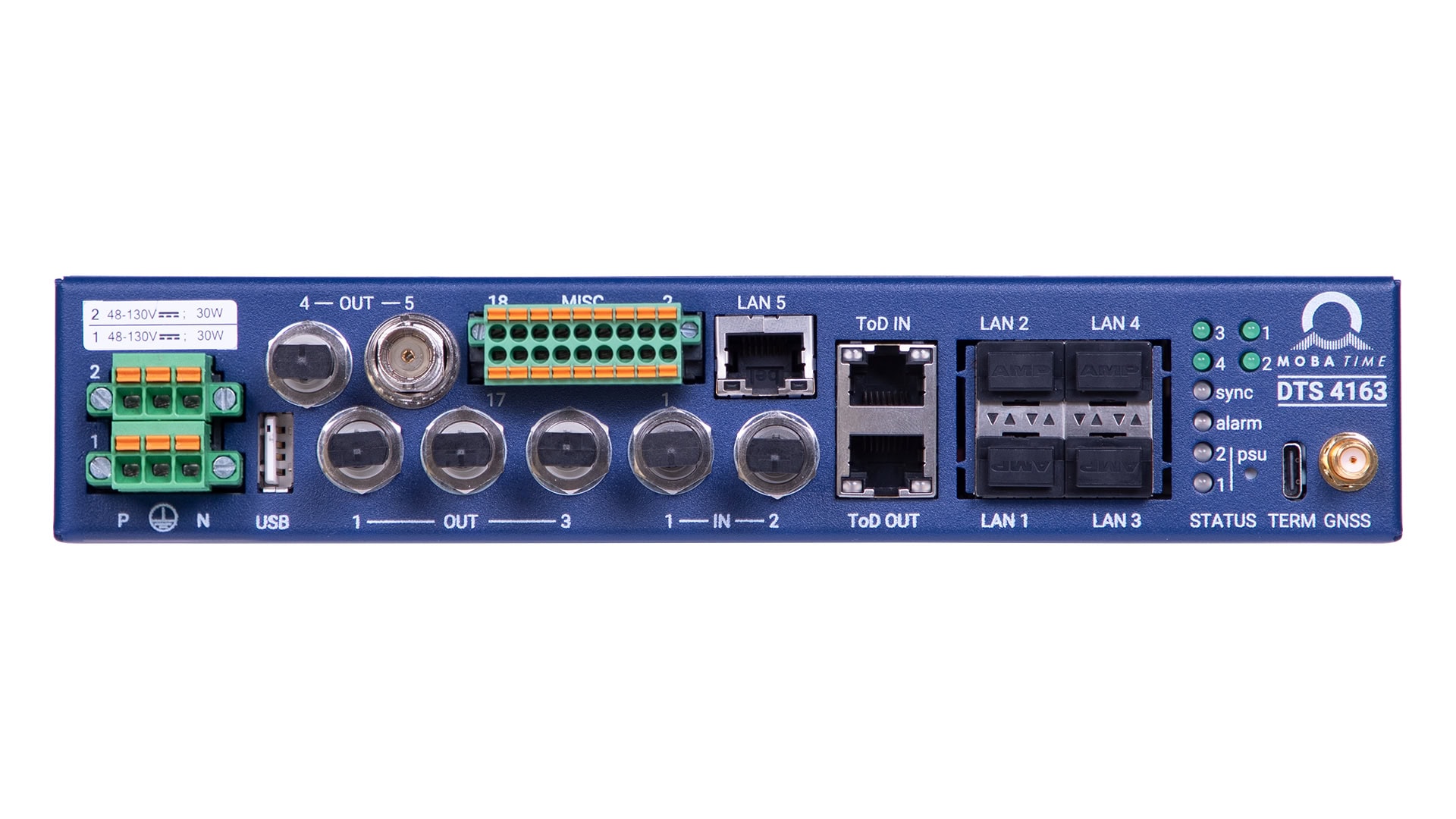

Network interface:4x 100/1000BaseT (LAN 1–4) or 4x SFP for miniGBIC module l, 1x 100/1000BaseT (LAN 5) management
Network features:PTP grandmaster / SyncE master / NTP V4/V3, server (RFC 5905/1305) / SNTP (RFC 4330), IP configuration: IPv4 (DHCP, static IP), IPv6 (autoconfiguration, DHCPv6, static IP), Link aggregation (IEEE 802.3ad) over 2 / dedicated LAN interfaces (LAN 2 & 3), VLAN: prioritized (IEEE 802.1p), tagged (IEEE 802.1Q), Static routing, IGMP / Multicast (RFC 3376, 1112, 4601, 3973), User authentication with Radius (RFC 2865), LDAP (RFC 4511) and secure LDAP (RFC 4513)
Reference signal inputs1x GNSS RF input (for GNSS antenna) to internal GNSS receiver, 92 channels, tracking, sensitivity -167 dBm, 2x PTP (from other PTP grandmaster, as PTP slave), 1x DCF current loop (e.g. GNSS 4500), 2x F-IN (1 PPS, 10 MHz, 2.048 MHz) (for hold-over enhancement only)
Reference signal outputs (network)PTP grandmaster (E2E, P2P, 1-step, 2-step, multicast, layer 2, IPv4/IPv6) (LAN 1–4), PTP profiles: default E2E/P2P; power utility (IEEE/IEC 61850-9-3); telecom ITU-T G.8265.1, G.8275.1, G.8275.2; gPTP IEEE 802.1AS, SyncE master, ESMC (SSM), NTP server (>10‘000 requests/second on all 4 ports combined), NTP mode: Server, Peer, Broadcast, Multicast / SNTP / MD5 and SHA1 authentication for NTP, TIME (RFC 868), DAYTIME (RFC 867)
Reference signal outputs (non-network)3/4x precision pulse/frequency/signal output, (1PPS to 10 MHZ or IRIG-B 00x), 1x IRIG-B-12x AM analog, 1x ToD, 2x serial output, RS-422, 2x configurable event switch, 2x event timestamper
PTP profilesDefault Profiles: E2E IEEE 1588-2008, P2P IEEE 1588-2008 | Power Profiles: IEEE C37.238-2011, IEEE C37.238-2017, IEC/IEEE 61850-9-3 | Telecom Profiles: ITU-T G.8265.1, ITU-T G.8275.1, ITU-T G.8275.2 | AVB/TSN: IEEE 802.1AS
AlarmsElectrical switch: relay contact, Network outputs (LAN 1–5): SNMP notifica-tions (Traps) V2c, Mail (RFC 4954, 2195), Alarm LED, Syslog (RFC 5424)
Management & SupervisionMOBA-NMS; monitoring possible, Terminal menu: USB-C terminal, SSH, SNMP (v1/v2c/v3), SNMPv3 with authentication and encryption, Syslog (RFC 5424), System firmware download via SCP, SFTP or USB, LEDs: Alarm, Power, Sync, Coming soon: web interface
SecuritySecure by design: hardware based security (secure boot), encrypted user data, encrypted and signed firmware image, Secure access to the device with SSH, SCP, SFTP, HTTPS (coming soon), Security features according IEC 62443-4-2
Show more

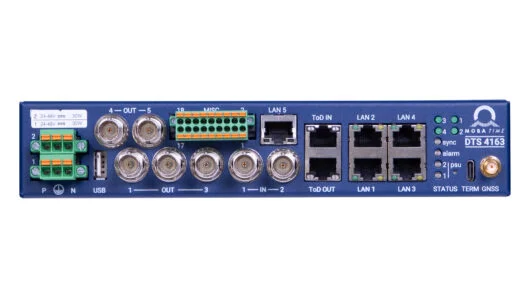

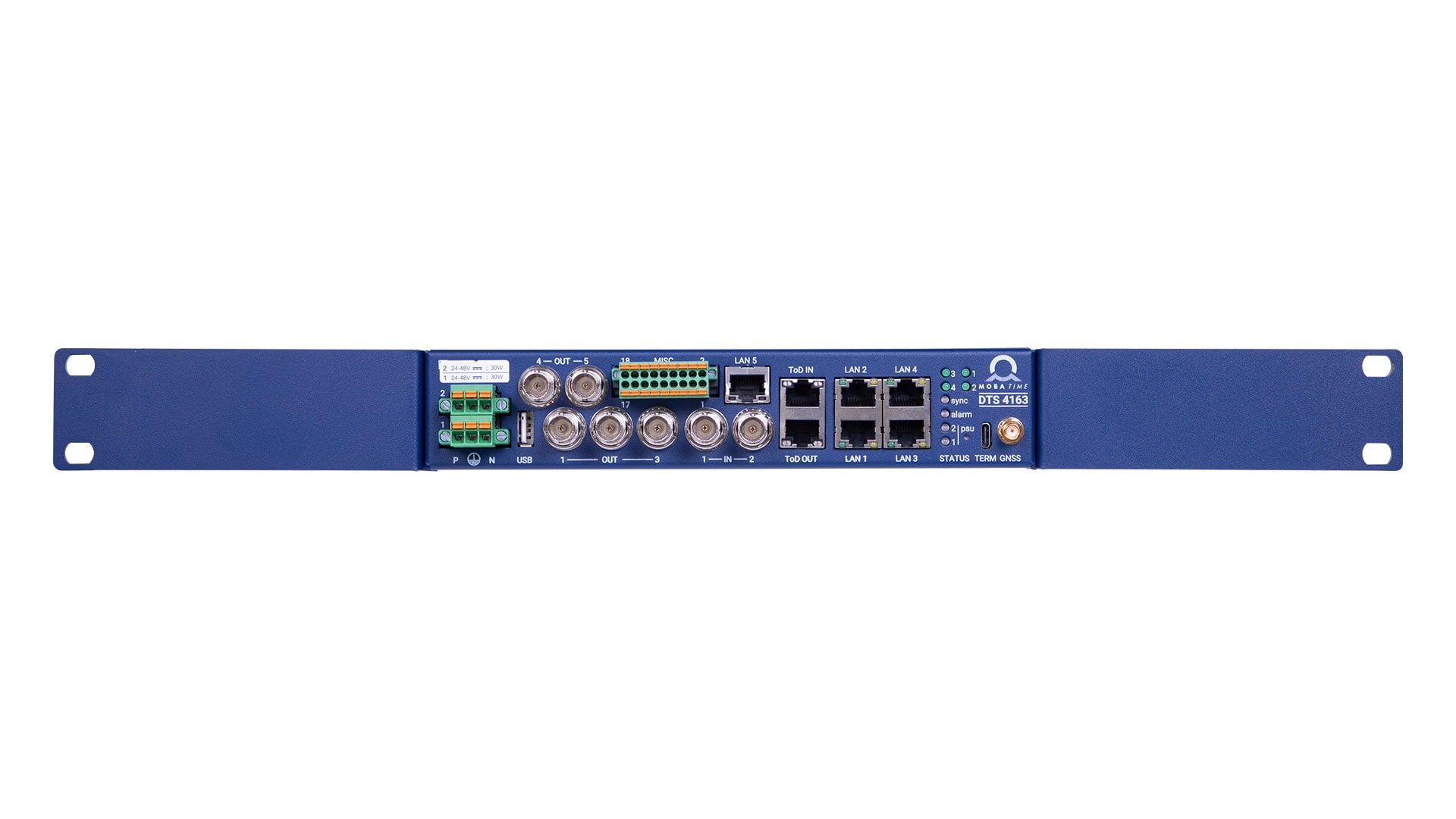

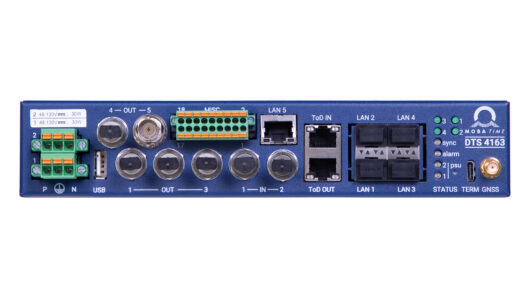

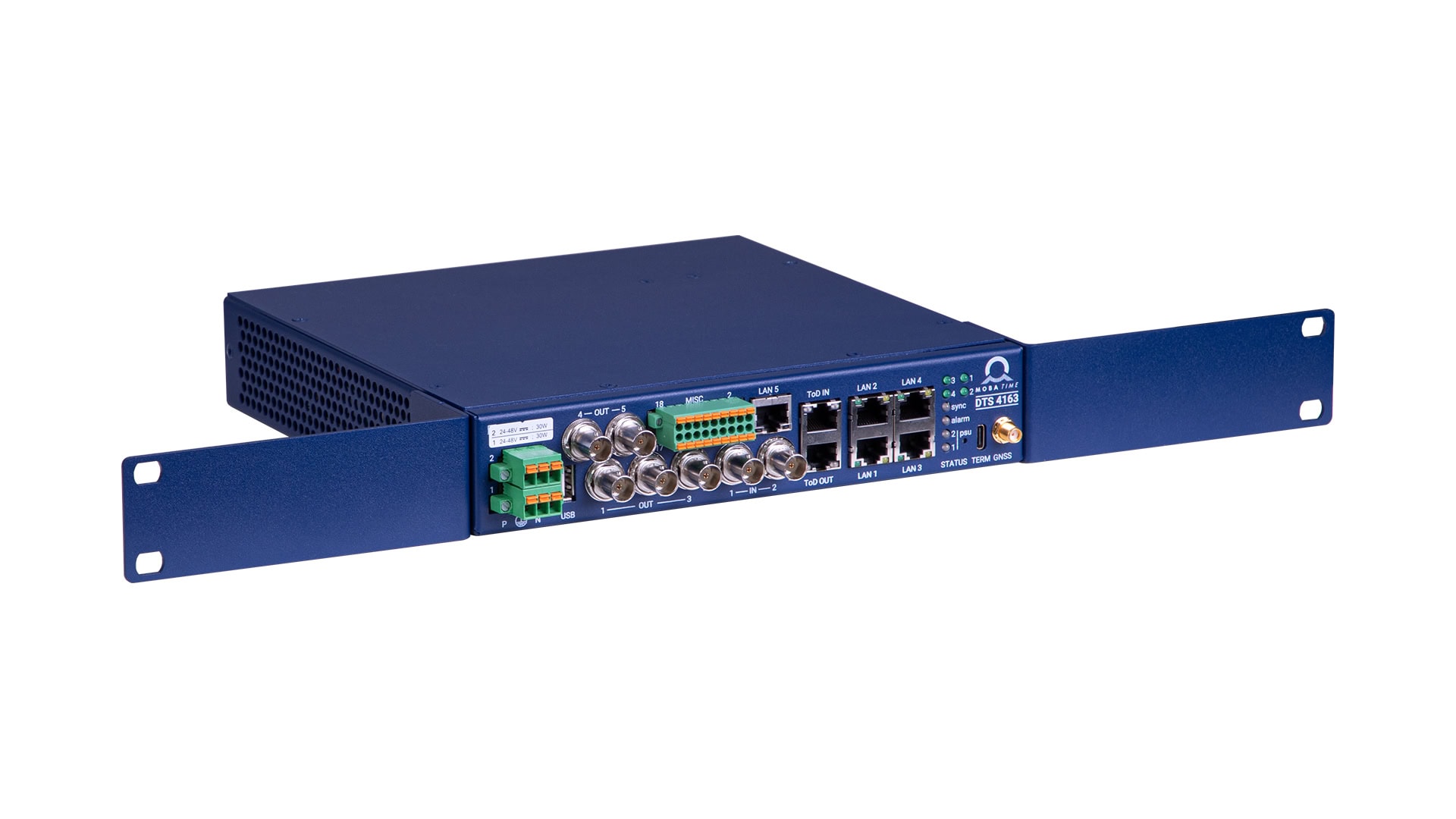

Dimensions:222 x 44 x 222 mm (With rack kit: 483 x 44 x 222 mm, 19'', 1U)
WeightApprox 2.0 kg (depending on version)
Housing materialSteel (powder coated)
Protection degreeIP 20
Operating temperature-20 – 50 °C
Operating humidity5 – 95% relative, no condensation
CoolingActive or passive cooling (fanless) options available
Power supplyDepending on version
ConformityThe DTS 4163.grandmaster conforms to the following agency approvals: CE, UKCA, CB, RoHS, WEEE, EMC: IEC 61850-3, IEC 61000-3-2, 61000-3-3, IEC 61000-6-2, 61000-6-4, Safety: IEC 62368-1
Accuracy, internal (typical values)GNSS to internal time: < +/- 50 ns, PTP to internal time: < +/- 50 ns, DCF to internal time (with GNSS 4500): < +/- 50 ns (after compensation for fix offset), F-In to internal time: < +/- 50 ns (frequency only)
Accuracy, time signal output (typical values)GNSS to NTP: < +/- 100 μs, GNSS to pulse/frequency: < +/- 50 ns, GNSS to IRIG (AM): < +/- 200 μs, GNSS to IRIG (DC): < +/- 50 ns, GNSS to serial output: < +/- 10 ms (Jitter <10 ms)
Show more

HSR (High-availability Seamless Redundancy) is a fault-tolerant Ethernet protocol specified in IEC 62439-3, designed for applications where continuous data transmission is critical. It operates using a ring or mesh topology, where each node simultaneously sends duplicate Ethernet frames in both directions. This ensures that even if one link fails, the other path still delivers the data with zero recovery time, making HSR highly suitable for real-time, mission-critical systems such as substation automation, industrial control, and transportation.

A key difference between HSR and PRP (Parallel Redundancy Protocol) lies in their network topology and implementation approach:

  • HSR uses a single network infrastructure with a ring or mesh configuration, allowing for compact or space-constrained installations without the need for separate switches or links. Each device must be HSR-capable and interconnected in the ring.

  • PRP, by contrast, requires two completely separate LANs (LAN A and LAN B), with each device transmitting duplicate frames over both networks.

Only few devices like the DTS 4163.grandmaster support both HSR and PRP protocols as defined in IEC 62439-3. This allows the device to be used in a range of redundant network configurations, including HSR ring topologies, PRP dual-network setups, and in some cases, hybrid environments.

PRP (Parallel Redundancy Protocol) is a fault-tolerant Ethernet protocol defined in IEC 62439-3. It ensures zero recovery time by transmitting identical Ethernet frames simultaneously over two separate and independent LANs—referred to as LAN A and LAN B. Each PRP-capable device uses two network interfaces and remains fully operational even if one of the networks fails. The receiving device accepts the first-arriving frame and discards the duplicate, avoiding retransmissions or delays and maintaining uninterrupted communication.

Compared to HSR (High-availability Seamless Redundancy), PRP offers full physical separation of network paths, which provides enhanced fault isolation and the ability to reuse existing network infrastructure. However, this comes at the cost of double the cabling, switches, and ports, which can increase system complexity and space requirements.

  • PRP is ideal for larger or existing installations where dual independent networks are already in place or where redundancy with maximum physical separation is required.

  • HSR, in contrast, uses a single-ring or mesh topology and achieves redundancy by sending duplicate frames in opposite directions through the same network infrastructure, making it more suitable for compact, distributed systems.

Only few devices like the DTS 4163.grandmaster support both HSR and PRP protocols as defined in IEC 62439-3. This allows the device to be used in a range of redundant network configurations, including HSR ring topologies, PRP dual-network setups, and in some cases, hybrid environments.



PTP profiles are standardized sets of configuration parameters tailored to specific industries or use cases. For example:

  • The Power Profile (IEC 61850-9-3) is used in substations and utility automation, prioritizing reliability and deterministic behavior.
  • The Telecom Profiles (ITU-T G.8275.1 and G.8275.2) are used in mobile networks for phase and frequency synchronization.

These profiles ensure interoperability and simplify deployment within each domain.

The Precision Time Protocol (PTP), defined by IEEE 1588, is a network protocol that synchronizes clocks throughout a network with sub-microsecond accuracy. It is critical in applications where precise timing is essential, such as energy systems, industrial automation, financial trading, and broadcasting. PTP achieves this high accuracy through hardware timestamping and delay compensation techniques.

Such considerations are important for hierarchically structured time server structures. The stratum level “0” always refers to the time server on the top level, which functions as the reference time source of the overall system, for example, by means of exact DCF / GPS synchronization. The level below, along with the time servers located there – which in turn synchronize themselves to level “0” – is given the stratum level “1” accordingly. Levels further below therefore add up the stratum level “n + 1”. As a rule, a maximum of 16 stratum levels are defined.

You’ll find it directly on the license web site – After entering the license number and filling out the registration form you will be able to download the license file and the newest MOBA-NMS software 32-bit or 64-bit version.

Link to the license page: https://nms-webportal.mobatime.com/license/login

To get a valid license you need to order a MOBA license from us. As soon as we receive the request, we will send you a PDF including the license key. In the PDF you will find a link, which leads to a landing page of us, which asks you to enter the license key. As soon as you have entered the key, your license is activated.

ATTENTION: a license is only for one workstation and should be activated by the responsible employee.

As a rule, NTP clients send a request packet every 64 seconds at most. With a device code of 100 “requests per second”, 6,400 NTP clients could already be synchronized in the network. For example, if you use the DTS 4160 time server with 10,000 “requests per second”, there are even 640,000 clients that could be synchronized with this type of time server in the network. Since more current NTP versions increase the polling interval by a factor of 16 with stable time synchronization, this results in an even greater number of possible NTP end devices. One should therefore take this fact into account when selecting the device specification that is really necessary for the specific need. For larger networks, it is also common that hierarchical time server structures – consisting of several network segments or levels, each with an assigned time server – are created. In this way, the time servers of the lower level always synchronize to the higher level right down to the central time server. This central time server typically has the highest performance features and is often redundant.

Our tutorial videos will help you with the procedure for commissioning a DTS device in a network without dynamic IP address assignment DHCP. You will be shown how to make the settings on the DTS device and how to assign the IP address.



What is supplied by MOBATIME?

  • DTS device (e.g. DTS 4801.masterclock)
  • Rack mounting material
  • Terminal opener-tool



What do you need to be ready?

  • PC or Laptop
  • Switch
  • Serial cable (SUB.D9 pole, 0-modem (crossed))
  • USB Serial Adapter (only if you don’t have a serial input on your device)
  • Power cable
  • Network (LAN) cable



You need to download the following software:



Below you will find our six tutorial videos that will help you complete the initial installation:

  1. Identify PC COM Port
  2. Open PuTTY
  3. Configuration of DTS Menu IP in PuTTY
  4. Define PC/Laptop IP
  5. Add Single Device in MOBA-NMS
  6. Select synchronization source in MOBA-NMS
