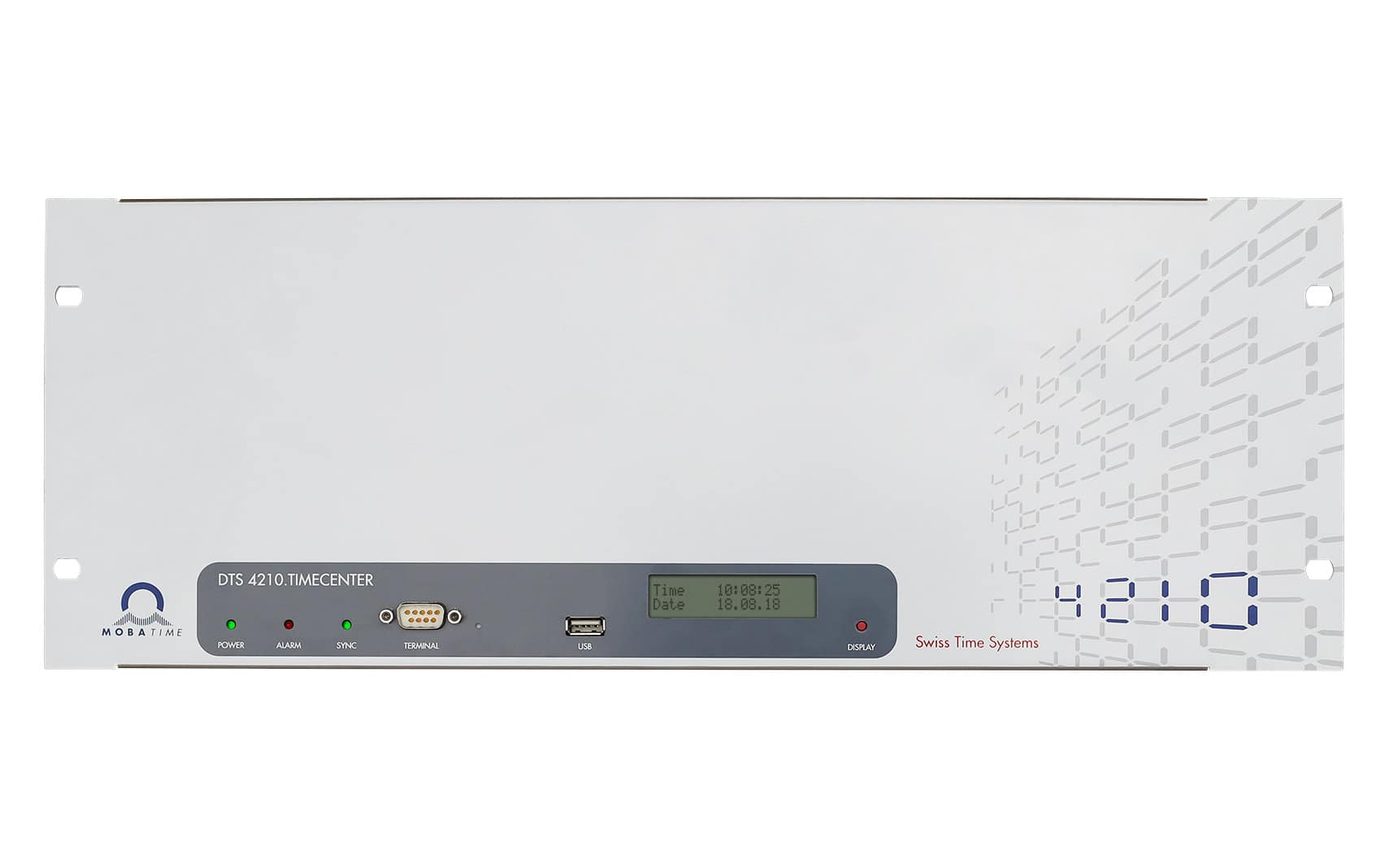

IEEE-1588 PTP Grandmaster - DTS 4210

DTS 4210 is a combined time distribution and synchronization device with up to 16 network ports (IPv4/IPv6). With its high-precision and intelligent concept for redundant operation, it offers a high degree of reliability and availability.

16 completely separated LAN ports (12x RJ45, 4x SFP):

  • provides PTP on 12 ports
  • 1- and 2-step master or slave
  • different profiles and domains per port
  • mutlicast/unicast
  • Pv4/Pv6/Layer 2
  • provides NTP on 4 ports (>5’000 request/s per port)

Multi-purpose device due to the different time code and frequency outputs:

  • 4x E1 RJ48 (balanced) or BNC (unbalanced)
  • 8x pulse/frequency/10MHz outputs
  • 4x IRIG-B / AFNOR
  • 8x serial output
  • 4x DCF current loop output

High degree of system redundancy by connecting two DTS 4210 via fiber optic link:

  • high availability
  • master-slave operation with automatic switch over in case of an error

High precision time:

  • Time reception from GPS, GLONASS or Beidou
  • GPS disciplined oscillator (GPSDO)
